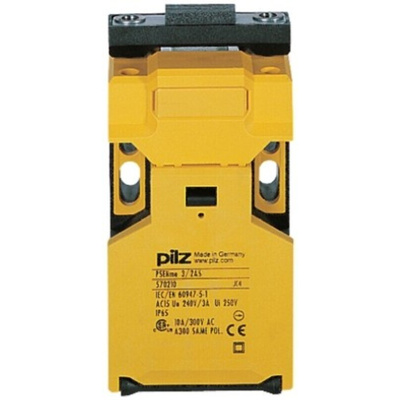

570222, Pilz Safety Interlock Switch, 2NC, Keyed Actuator Included, Glass Fibre Reinforced Thermoplastic, Выключатель

PSENmech Safety Switch

The PSENmech from Pilz is a mechanical safety switch with separate actuator, suitable for mounting on safety guards. The interlock switch is triggered if the guards are opened, stopping any hazardous machine movement via a Pilz evaluation device.

Flexibility and speed during installation plus high plant availability
Compact design
Can be connected to all Pilz evaluation devices
Up to four horizontal and four vertical approach directions
Operating temperature -30 to +80°C
Screw terminals M20
Plastic bodied design
IP65 protection

Standards

VDE 0660 T100, EN 60947-1, VDE 0660 T200, EN 60947-5-1, IEC 60947-5-1 GS-ET-19

Approvals

EC, BG, CCC, cCSAus

Interlock Switch
