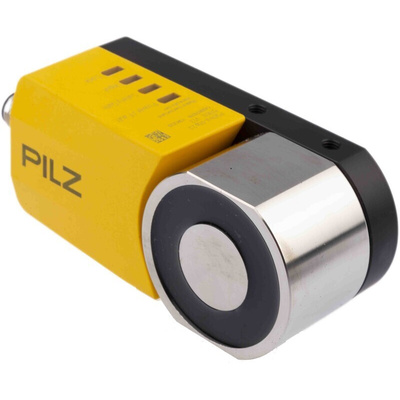

570502, Pilz PSENslock Magnetic Safety Switch, Plastic, 24 V dc, Выключатель

Pilz Safety Gate System

The Pilz PSENslock series safety gate system has an assured release distance of 8mm. It has 2OSSD RFIDsafety outputs. It is a non-contact safety gate system which combines safety gate monitoring and a non-contact magnetic interlock in a single unit. The combination of safe position monitoring and process guarding make the PSENslock suitable for universal use and high category applications. This magnetic guard locking device is largely non-wearing, as compared to mechanical technologies.

Features and Benefits

Input The supply voltage is 24VDC
Holding force is 500N
Unique coding
System optimised for safe position monitoring with process guarding
high-level of manipulation protection (coding)
Process protection through magnetic guard locking
Four assembly directions
Tolerant to gate misalignment
Flexible connectors
Optimised for mounting on to 45mm profiles

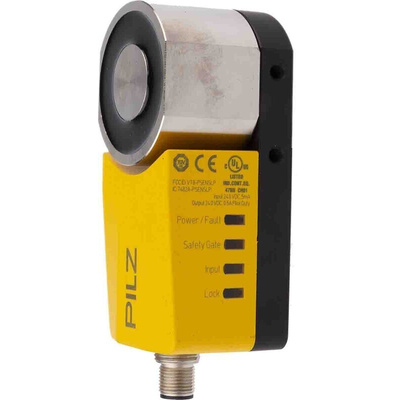

User-friendly diagnostics via double sided LED display
Long product service life as it is mechanically non-wearing
Housing material is Anticorodal, hard anodised

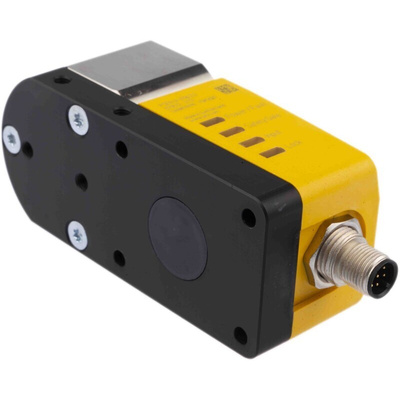

Connection type is M12, 8-pin male
Operating temperature ranges between -25°C and 55°C

Certifications

IP67 rated
PLe Cat. 4
CE certified
cULus approved
TÜV certified
FCC certified
IC certified
EAC (Eurasian) certified
