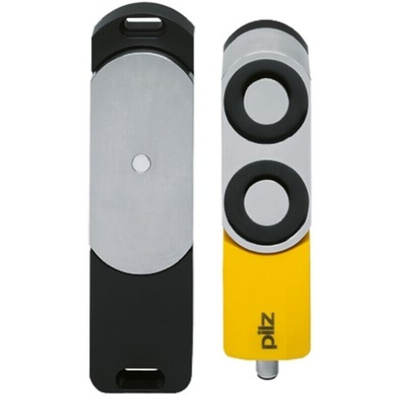

570630, Pilz PSENslock Series Solenoid Interlock Switch, 24V dc, Actuator Included, Выключатель

Pilz Safety Gate System

The Pilz PSENslock series safety gate system has an assured release distance of 8mm. It has 2OSSD RFIDsafety outputs. It is a non-contact safety gate system which combines safety gate monitoring and a non-contact magnetic interlock in a single unit. The combination of safe position monitoring and process guarding make the PSENslock suitable for universal use and high category applications. This magnetic guard locking device is largely non-wearing, as compared to mechanical technologies.

Features and Benefits

Input The supply voltage is 24VDC
Holding force is 1000N
Type of coding is coded
System optimised for safe position monitoring with process guarding
high-level of manipulation protection (coding)
Process protection through magnetic guard locking
Four assembly directions
Tolerant to gate misalignment
Flexible connectors
Optimised for mounting on to 45mm profiles
User-friendly diagnostics via double sided LED display
Long product service life as it is mechanically non-wearing
Housing material is Anticorodal, hard anodised
Connection type is M12, 8-pin male
Operating temperature ranges between -25°C and 55°C

Certifications

IP67 rated
PLe Cat. 4
CE certified
cULus approved
TÜV certified
FCC certified
IC certified
EAC (Eurasian) certified
