570270, Pilz PSEN PSENhinge Safety Hinge Switch, 2NC, M12, Переключатель

7448698
Номер производителя: 570270Производитель: Pilz
Цена за шт.
49113.00 руб. (С НДС) *
Количество 10+ 20+
Цена 47643.00 руб. 46263.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

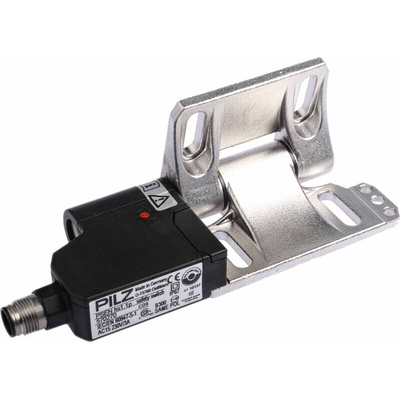

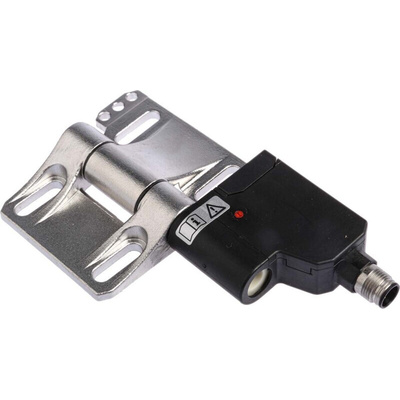

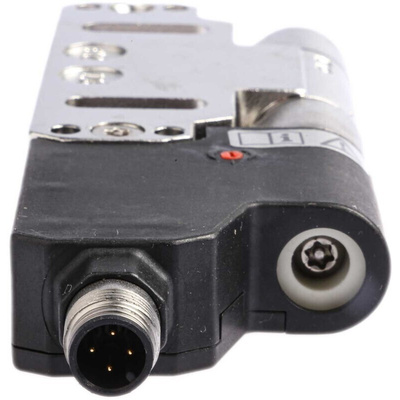

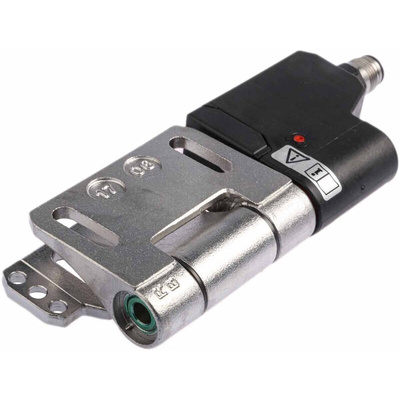

Pilz Safety Hinge Switch

The Pilz 2NC right safety hinge switch is designed to offer a high level of flexibility in installation, connection and adjustment. When used in conjunction with Pilz control systems, it can be used for applications with high safety requirements. This hinge switch is a manipulation proof as it is integrated directly into the safeguard. Also, the integrated precision adjustment system of this hinge switch means the user can employ a change kit to redefine the switching point even after setting if upgrading the plant.

Features and Benefits

Safe and complete solution for rotatable/hinged guards, comprising hinge and safety switch
Manipulation proof and space saving as it is integrated directly into the safeguard
Switching point is free to set from 0° to 270° and is re-adjustable
Slot fastening for mounting on profiles
Simple readjustment by means of an integrated precision adjustment system
Systems can be attached to right and left
Low maintenance
Plastic bodied design
Connection type M12 connector, 4 pin

Applications

Packing machines
Printing and paper machines
Tool machines
Metal industry
Electrical industry
Special machine construction
Measurement technology, process engineering, testing and laboratory equipment
Plastics processing machinery
Enclosures/profile systems
Food processing machinery

Certifications

VDE 0660 T100
DIN EN 60947-1
IEC 60947-1
VDE 0660 T200
DIN EN 60947-5-1
IEC 60947-5-1
BG certified
CCSAUS B300 certified
IP67 rated

Техническая спецификация
pdfPSENhinge safe hinge switch Literature
pdfPSENhinge Operating Instructions
pdfMachine Guarding and Safety Range Overview
Ввод кабелепровода:
M12
Диапазон:
PSEN
Нормальное состояние конфигурации:
2NC
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-25°C
Размер кабельных входов:
M12
Серия:
PSENhinge
Стиль блокировки:
Hinge
