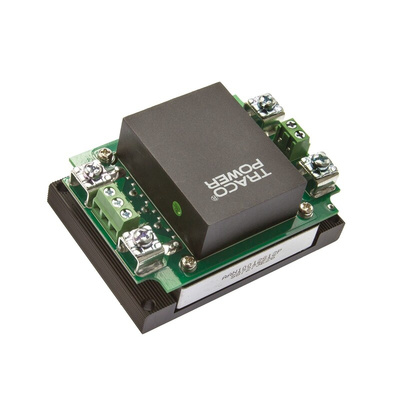

TEP 100-1212-CMF, TRACOPOWER TEP 100 DC-DC Converter, 12V dc/ 8.4A Output, 9 → 18 V dc Input, 100W, Chassis Mount, +75°C Max Temp, Преобразователь

Traco Power DC-DC Converter, 2500pF Maximum Isolation Capacitance, 25ms Typical Start-Up Time - TEP 100 Series - TEP 100-1212-CMF

Stabilise the power supply to your circuit using this DC-DC converter from Traco Power. It accepts an input voltage between 9 and 18V DC and converts it to a steady output of 12V DC that's widely compatible. The unit puts an isolating barrier between the input and output sources to boost electrical safety. You can adjust the output voltage between -20% and +10% for flexibility in the power feed. Thanks to the combined overtemperature, overvoltage and short-circuit protection, this device is a triple threat against faulty current conditions.

Features & Benefits

• Tough metal housing stands up to impact
• 91% efficiency rating, eliminating the need for a heat sink
• Power rating of 100W for use with heavy-duty equipment
• Withstands thermal shock and vibration to deliver a long service life
• Start-up time of 25ms allows rapid conversions

Applications

• Lighting fixtures
• Telecommunications equipment
• Server rooms
• Automotive engineering

How long will this converter last?

As it has a mean time between failures of 331,000 hours, you can rely on this converter to last a long time with minimal risk of downtime.

How accurate is the device?

It has a voltage set accuracy of ±1% to minimise the risk of conversion errors.
