TRACOPOWER Switching Power Supply, TXL 750-48S, 48V dc, 15.6A, 758W, 1 Output, 85 → 264V ac Input Voltage, Источник питания

TRACOPOWER Switch Mode Power Supply

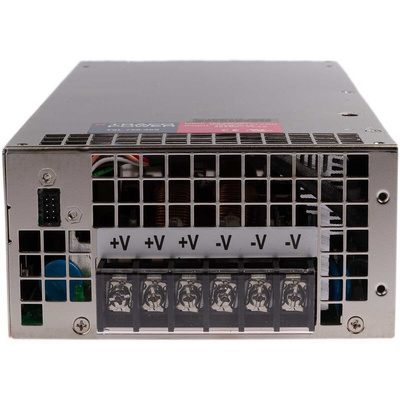

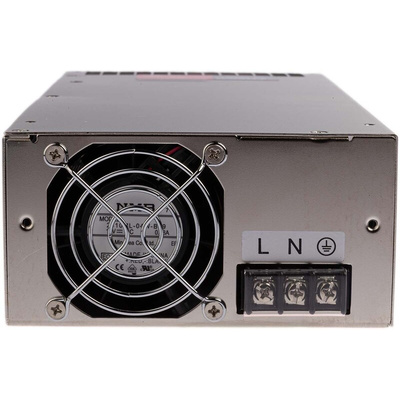

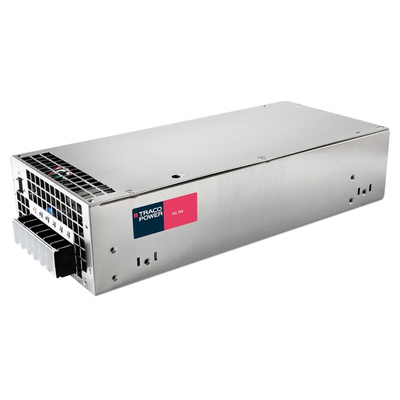

The TRACOPOWER TXL series 758W rated switch mode power supply with a single output has the output current rating of 15.8A at 48VDC. It has the universal input supply voltage ratings from 90VAC to 264VAC and 127VDC to 375VDC. It has a low profile metal case and a screw terminal block connection they are easy to install in any equipment. The power supply complies with the European EMC standards and the low voltage directive (LVD).
Note:
De-rating 2% per °C above 45°C (2.5% per °C for TXL220 types)
TXL 120 series is not recommended for new designs, please refer to the TXL 100 series for the suitable alternatives
Caution:
Total power must not exceed specified maximum output power for multi-output models.

Features and Benefits

Compact design
Easy installation
Efficiency is 90%
Metal case
Overvoltage protection
Short circuit protection
Wide range universal input

Certifications

CB certified
EN 60950-1 2nd edition
IEC 60950-1
UL 60950-1
UL approved

TXL 750 Series CB Test Certificate

TXL UL Certificate of Compliance

TXL 750-48S Datasheet

Industrial Power Solutions Catalogue

Selection Guide
