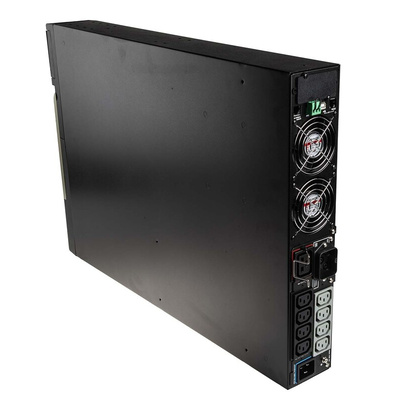

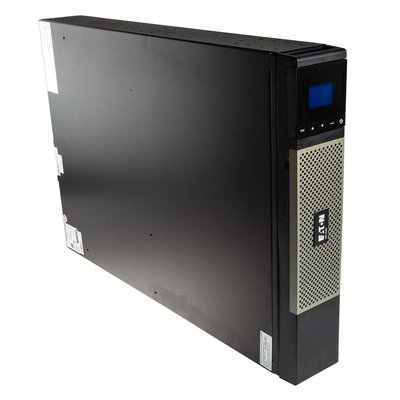

5PX3000iRTN, Eaton 150 → 294V Input Rack Mount, Stand Alone Uninterruptible Power Supply, 3000VA (2.7kW), 5PX, ИБП

Eaton 5PX UPS Uninterruptible Power Supplies

The Eaton 5PX range features a rack-mount or stand-alone UPS that provides line-interactive backup power and scalable runtime for servers, storage systems, VoIP gear, and network equipment. With a next-generation intuitive LCD, energy consumption metering down to the outlet group level and high efficiency up to 99%, 5PX is the perfect UPS solution for the power protection of data centres, servers, switches, routers and storage devices.

Features and Benefits

• Next-generation graphical LCD display shows a range of information including status and measurements on a single screen (in seven languages)
• The 5PX can meter energy consumption down to the managed outlet group
• Navigation keys make these UPS systems easy to use
• The Eaton UPS system is energy efficient with up to 99% efficiency
Line-Interactive High Frequency technology
• Serial and USB connectivity are available
• Advanced battery management (ABM) on Eaton UPS power supplies allows for a 50% extension of battery life
• Optional hot-swap maintenance bypass module for batteries
• 0.9 output factor, delivering more power and protecting more servers
• Rack-mount or tower mount
• Easy to install and supplied with a rail rack kit

What is an Uninterruptible Power Supply used for?

An uninterruptible power supply (UPS) is designed to give your computers, servers, server rooms and data centres power in the case of any unexpected energy cut off or in similar applications. These power supply devices contain a battery that guarantees power to your computer system for a certain period of time. These enable the user time to save the current task and shutdown software. Uninterruptable power supplies ensure mission-critical data loss can be prevented.

Approvals

CE,CB report,TUV

Standards

IEC/EN 62040-1-1 ( Safety ), IEC/EN 62040-2 ( EMC ) , IEC/EN 62040-3 ( Performance )

Eaton Uninterruptible Power Supplies(UPS)

The Eaton 5PX 3000VA and 2.7kW are a rack-mount or stand-alone UPS that provides line-interactive backup power and scalable runtime for servers, storage systems, VoIP gear, and network equipment. With a next-generation intuitive LCD, energy consumption metering down to the outlet group level and up to 99% efficiency, 5PX is the perfect UPS for protection of servers, switches, routers and storage devices.

Features and Benefits

0.9 power factor to protect more servers from one UPS
Delivered with Eaton’s intelligent power software compatible with all the major OS, including virtualization software
Input voltage ranges between 150V and 294V
Output voltage is 230V
Power rating is 2.7KW
Serial port, USB communication
operating temperature ranges between 0°C and 40°C

Certifications

CB report
CE
IEC/EN 62040-1-1 (Safety)
IEC/EN 62040-2 (EMC)
IEC/EN 62040-3 (Performance)
TUV
