RS PRO Contact Block for Use with ADA16E Series, 125 V ac, 250 V ac, 1CO, Контактный блок

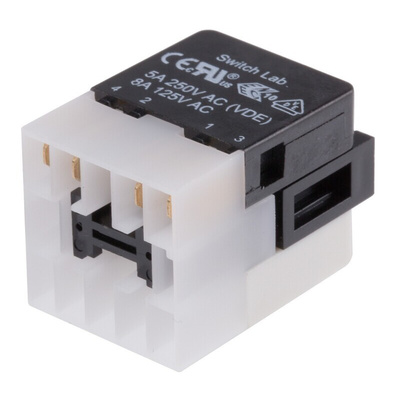

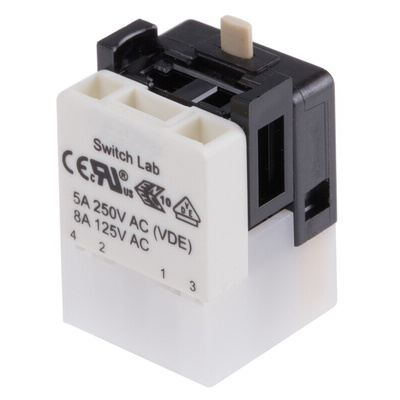

RS PRO Contact Unit

Need a contact unit to use as part of a modular switch? Try this one from RS PRO to turn your equipment on and off. You can use this unit together with a separate actuator to configure various combinations of switch setups.


The unit is versatile and quick to install as it has universal terminals that can be plugged in or soldered. The contacts are made of silver, which offers excellent conductivity in addition to wear and oxidation resistance. This means the unit is built to last and will deliver reliable performance over its lifespan.


A broad operating temperature range of -25°C to +55°C makes this component suitable for a variety of demanding environments, such as hot warehouses or cold storage units. You can use it for push button switches in lighting and industrial machinery applications.

Features and Benefits

• Contact block


• Normally Open/Normally Closed (NO/NC) contact configuration


• Silver contact material


• Current rating of 8 A


• Operating temperature range of -25°C to +55°C


• Plug-in, solder terminal type


• Voltage rating of 125 V AC and 250 V AC

RS Pro Datasheet
