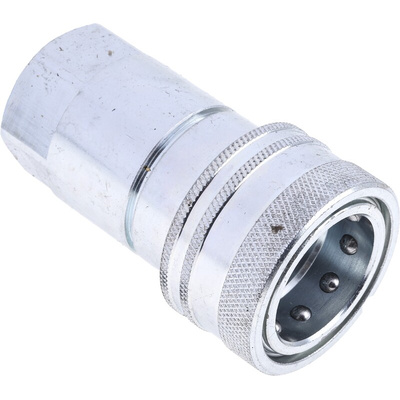

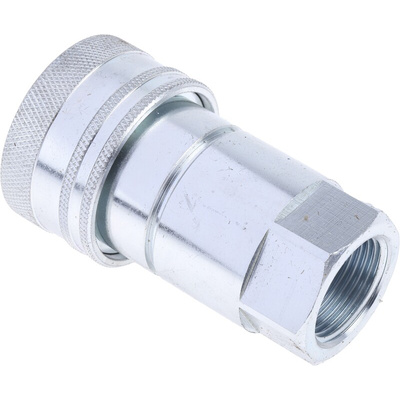

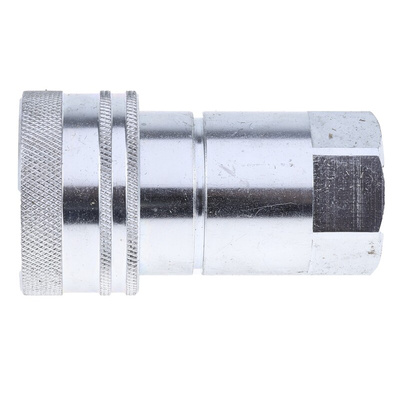

RS PRO Steel Female Hydraulic Quick Connect Coupling, BSP 3/4 Female, Муфта

RS PRO Steel Female Hydraulic Quick Connect Coupling, BSP 3/4 Female

This quick coupler from RS PRO is compatible with various existing standards to allow it to work with the systems you already have. The connector has a built-in shut-off valve to prevent leakage of the hydraulic fluid when the connection is released. This female socket has a quick release collar so you can disconnect it from the plug without requiring any tools.
The wide pressure and temperature ratings coupled with a tough and resilient design make this connector ideal for industrial and agricultural applications. Due to the design of the seal on the matching connector, this socket should be used on the supply side of the hydraulic system. The barrel of the connector contains a ring of ball bearings to ensure that the couplers can easily rotate, even when the system is pressurised, ensuring that the connecting hoses are protected from twisting.

Features and Benefits

• Compatible with Faster ANV Series, Hansen HA 15000 (Gromelle), Intertraco A Series, Safeway S565, Stucchi BIR Series
• Female coupling gender
• Yellow passivated, zinc-plated finish
• Ball-lock locking style
• Steel material
• Maximum operating pressure of 250 bar
• Operating temperature range of -25°C to +125°C
• Nitrile rubber seal material
• 3/4 in female thread
• Thread standard is BSP (British Standard Pipe)
• Union type

RS Pro Datasheet
