RS PRO Steel Female Hydraulic Quick Connect Coupling, BSP 1/4 Female, Муфта

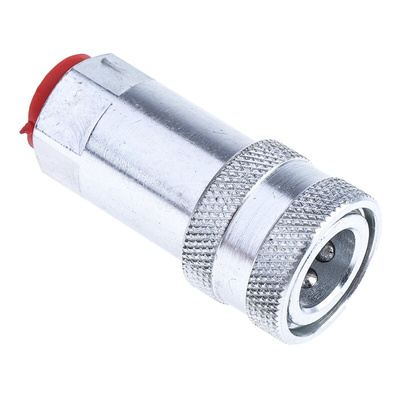

RS PRO Steel Female Hydraulic Quick Connect Coupling 1/4 in

With this hydraulic quick connect coupling from the RS PRO range, it's never been simpler to make and release connections in fluid transfer systems. It's well-suited to a number of agricultural and industrial applications such as tractors, oil well pumps and hydraulic jacks.

This self-sealing coupling is compatible with a wide range of manufacturing series. The steel construction is zinc-plated for corrosion resistance. To prevent leaks, it can shut off fluid flow instantly. It's fitted with a nitrile rubber O-ring for a secure seal, with a secondary PTFE seal for extra back-up.

This handy unit with female coupling fits onto any BSP 1/4 inch female thread. The ball-lock coupler system means it's easy to lock tightly in place.

As part of the quality RS PRO range, this product has been exhaustively tested for reliability. It meets the ISO 7241-A standard as an effective Series A coupling.

Features and Benefits

• Hydraulic quick connect coupling
• Female coupling
• Fits onto BSP 1/4 inch female thread
• Compatible with Faster ANV Series, Hansen HA 15000 (Gromelle), Intertraco A Series, Safeway S565, Stucchi BIR Series
• Union type coupling
• Made from steel
• Yellow passivated, zinc-plated corrosion-resistant finish
• Nitrile rubber seal
• Ball locking style
• Maximum operating temperature of +125˚C
• Minimum operating temperature of -25˚C
• Maximum operating pressure of 400 bar
• Diameter of 25 mm
• Length of 48 mm
• Spanner size of 19 mm
• Meets standard ISO 7241-A as an effective Series A coupling
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Standards

ISO 7241-A
