RS PRO Steel Female Hydraulic Quick Connect Coupling, BSP 3/8 Female, Муфта

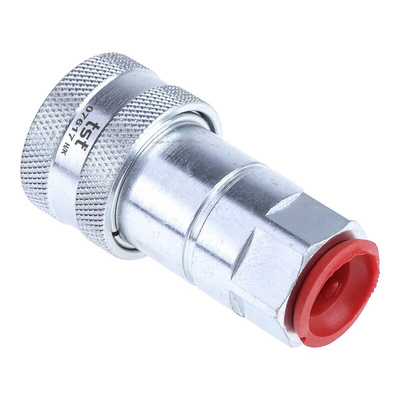

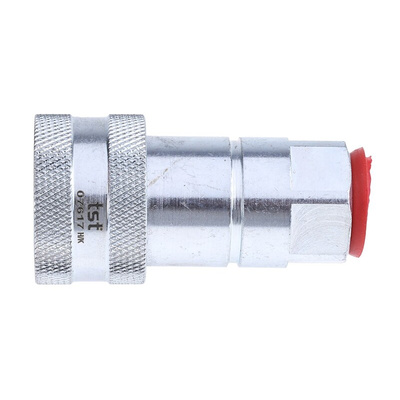

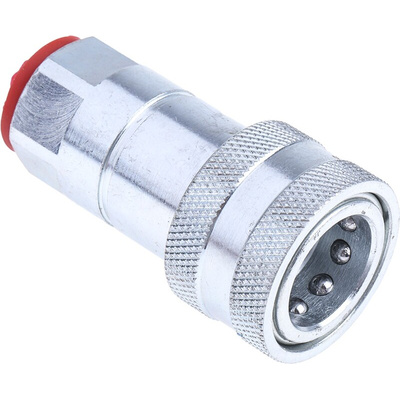

RS PRO Steel Female Hydraulic Quick Connect Coupling 3/8 in

Use this hydraulic quick connect coupling from RS PRO in fluid transfer systems to make and release connections with a minimum of fuss. A female coupling, it fits onto a BSP 3/8 inch female thread. This device is compatible with a number of different series, including the Faster ANV Series, Safeway S565 and Stucchi BIR Series.

In the event of leaks, this self-sealing coupling will shut off fluid flow immediately. It has a nitrile rubber seal with a secondary PTFE seal for back-up. Made from stainless steel, it has a passivated, zinc-plated finish for additional protection against corrosion.

As part of the reliable RS PRO range, this product has been extensively tested by our engineers to ensure quality and consistency. It meets the ISO 7241-A standard as an effective Series A quick-connect coupling. Devices such as this one are typically used in agricultural and industrial applications such as tractors.

Features and Benefits

• Hydraulic quick connect coupling
• Female coupling
• Fits onto BSP 3/8 inch female thread
• Compatible with Faster ANV Series, Hansen HA 15000 (Gromelle), Intertraco A Series, Safeway S565, Stucchi BIR Series
• Union type coupling
• Made from steel
• Yellow passivated, zinc plated corrosion-resistant finish
• Nitrile rubber seal
• Ball locking style
• Maximum operating temperature of +125˚C
• Minimum operating temperature of -25˚C
• Maximum operating pressure of 300 bar
• Diameter of 31 mm
• Length of 57 mm
• Spanner size of 22 mm
• Meets standard ISO 7241-A as an effective Series A coupling
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Standards

ISO 7241-A

RS Pro Datasheet
