RS PRO Steel Female Hydraulic Quick Connect Coupling, BSP 1 Female, Муфта

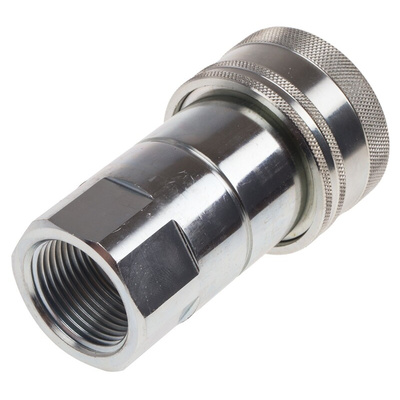

RS PRO Steel Female Hydraulic Quick Connect Coupling, BSP 1 Female

This female hydraulic quick coupling from RS PRO has a built-in valve to immediately shut the fluid flow off when disconnected, preventing the leak of hydraulic fluid, including at low pressures. They are built with ball bearings inside the collar to allow a plug to freely rotate inside the socket, even when under pressure. This ensures the hoses don't get twisted and preventing damage. The collar also allows for a quick disconnect of the couplers without the need for any tools.
The coupler is designed to be resilient which, along with the wide supported pressure and temperature range, makes it ideal for use in industrial or agricultural applications. This socket should be used on the supply side of the system, due to the design of the seal on the male connector.

Features and Benefits

• Compatible with Faster ANV Series, Hansen HA 15000 (Gromelle), Intertraco A Series, Safeway S565, Stucchi BIR Series
• Female coupling gender
• Yellow passivated, zinc-plated finish
• Ball-lock locking style
• Steel material
• Maximum operating pressure of 230 bar
• Operating temperature range of -25°C to +125°C
• Nitrile rubber seal material
• Female thread
• Thread standard is BSP (British Standard Pipe)
• Union type

RS Pro Datasheet
