1415039-1, TE Connectivity, 24V dc Coil Non-Latching Relay SPNO, 16A Switching Current PCB Mount, Single Pole, Реле

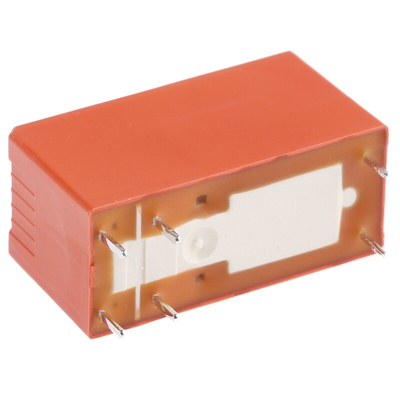

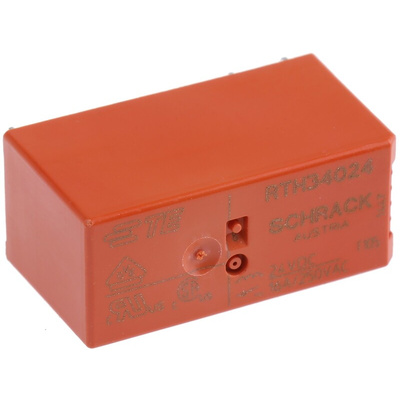

TE Connectivity RTH Series High Temperature PCB Power Relay

RTH series high temperature PCB power relays that perform in a 105°C ambient temperature. These RTH series high temperature PCB power relays are through hole PCB mount with 5mm pinning and have flux tight orange enclosures. The coils of these high temperature power relays are 400 mW sensitive. These RTH series PCB power relays also have reinforced insulation.

Ambient temperature 105°C at rated load
Sensitive coil 400 mW
Reinforced insulation
RTII - flux proof
Creepage & clearance 10mm
5mm pinning
Applications include oven control, cooking plate control etc

Approvals

UL, CSA, VDE

1 pole 16A, 1 form C (CO) or 1 form A (NO) contact
Ambient temperature 105°C
Sensitive coil 400mW
5kV/10mm coil-contact
Reinforced insulation

Datasheet
