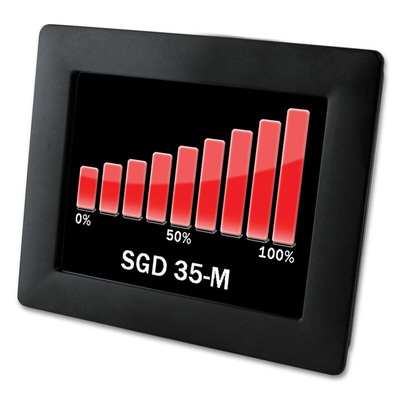

SGD 35-M, Lascar PanelPilot , LED Digital Panel Multi-Function Meter for Voltage, 75mm x 92mm, Многофункциональный измеритель

Lascar Smart Graphics Display

The Lascar PanelPilot series 3.5in smart graphics display has a 320 x 240 pixels (QVGA) colour display and USB programming interface. By using the PanelPilot software (available for Windows 7, 8.1 and 10), users can choose from an increasing number of voltmeter types that can be customised as per their needs. The user can customise the colours, text labels, splash screen and input voltage scaling through the software and upload to the meter with the help of the USB connection. Once programming is complete, you can save all selections to the meter and computer, detach the unit and mount in their panel as they would any standard display.

Features and Benefits

Voltage measurement ranges from 0VDC and 40VDC
Multiple voltmeter configurations included free
pixels resolution TFT display with touch screen technology
Programmable via the USB interface
Accuracy is 0.05%

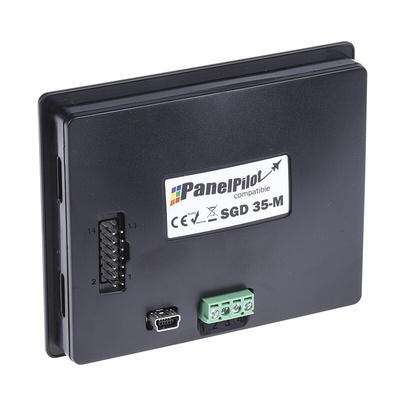

Simple panel mounting solution with screw terminal connection
Wide operating voltage of 4VDC to 30VDC
Digital Hold
Cut-out height of 75mm, width of 92mm and depth of 18.4mm
Operating temperature ranges between 0°C and 40°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
