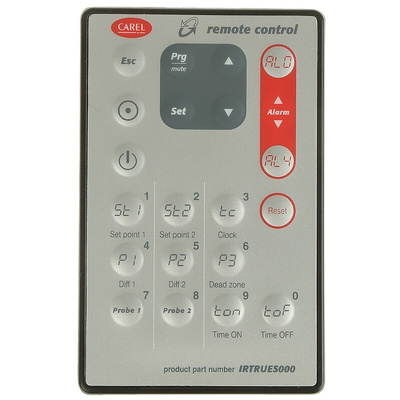

IRTRUES000, Carel Remote Controller for Use with IR33 Temperature Controller

IR33 Smart Refrigeration Controllers

The IR33 smart refrigeration controllers are designed specifically for the refrigeration installer as they enable selection from a range of pre-loaded applications, eliminating the need to program the controller parameters.The controller then just needs to be wired up and installed in the panel. The controllers have up to 3 NTC or PTC inputs and versions are available which have 1, 2, 3 or 4 relay outputs for control of the compressor, active defrost, evaporator ventilation fan and auxiliary output. The 4 relay version also incorporates a real time clock and HACCP function. The controllers are housed in a compact panel mounting enclosure and are powered from 115 to 230Vac. All versions can be connected to a network for monitoring and programming using the optional RS-485 serial interface.

No programming required
4 pre-loaded configurations
NTC or PTC thermistor probe inputs
Up to 4 relay outputs
16A compressor output
Real time clock and HACCP function
Infrared receiver and buzzer
115 to 230Vac powered
RS-485 serial connection
IP65 enclosure
Plug-in terminals
Front panel mounting system
Accessory: RS485 serial communication interface, stock-no. 745-8005

Remote Control for IR33/DN33

IR33 Universal Electronic Controller - User Manual.pdf

IR33 Universal Electronic Controller - Datasheet

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4
