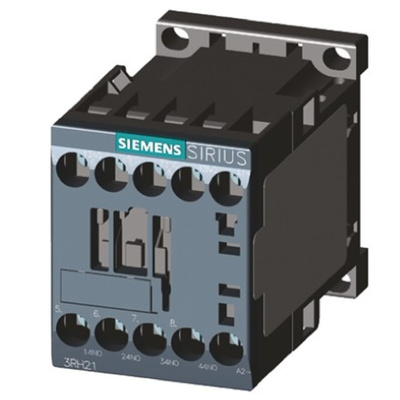

3RH2122-1AP00, Siemens 3RH2 Series Contactor, 230 V ac Coil, 4-Pole, 10 A, 2NO + 2NC, 690 V ac, Контактор

Siemens Contactor, 2NO/2NC Normal State Configuration, 230V AC Coil Voltage - SIRIUS Innovation Series - 3RH2122-1AP00

Looking for a powerful device to control the flow of electricity in high-current circuits? Trust this contactor from Siemens to take the reins. It has a 690V AC contact voltage rating, so it's a top choice for high-power applications. An operating temperature range of -25°C to +60°C means it handles challenging environments with ease. As it has compact dimensions of just 57.5 (H) x 45 (W) x 73mm (D), the unit won't take up excess room in your workspace. When vertically mounted, it can be rotated up to 180° for added flexibility.

Features & Benefits

• Remote on/off switching for user safety in hazardous industrial environments
• Screw terminals achieve a stable connection that can withstand vibration
• Surge resistance up to 6kV reduces the risk of damage from electrical faults
• IP20 rating indicates it's touch-proof and sealed against dust, for safe use in contaminated conditions

What's the expected service life of this contactor?

This product has a typical service life of up to 30,000,000 switching cycles, so it's a durable option that delivers long-term performance.
