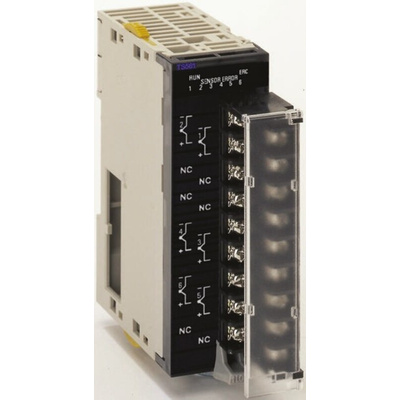

CJ1W-TC002, Omron PLC Expansion Module for Use with CJ Series, Thermocouple, PNP, Модуль расширения

Omron Temperature Control Module

The Omron temperature control module has thermocouple inputs, 4 loops and open collector control PNP outputs. It is a special I/O unit with the direct input of thermocouple or resistance thermometer, PID control with 2 degrees of freedom and open collector output. This temperature sensor unit is classified as digital I/O units when considering I/O allocations and will take digital I/O points from the total allocation for a CJ1M CPU. In data storage mode, up to 65 data collection patterns are possible with one basic collection pattern and data collection patterns 1 to 64. It is used with CJ series.
Omron CJ1M digital and analogue I/O modules
CJ1 digital I/O, analogue I/O and communication modules clip together to the right of the CPU in any combination up to a maximum of 10 modules. Further 10 modules can be connected to a CJ1M-CPU13 or CJ1M-CPU23 based system as part of an expansion assembly.
Dimensions: Height- 90mm, Width- 31mm, Depth- 89mm
All the modules have removable screw terminal blocks for I/O connections, except screwless (SL).

Features and Benefits

500ms sampling cycle
Run/Stop control from CPU Unit
Unrestricted CPU unit cycle time
Heater burnout detection
Auto-tuning (AT) function
DIN rail mounting
Removable terminal block with 18 points (M3 screws)

Applications

Industrial automation
Pharmaceutical
Food processing

Certifications

CE
cULus approved
Lloyd approved
NK certified
UC1 listed
