E5C2-R20J AC100-240 0-300, Omron E5C2 Digital Thermometer Alarm, 48 x 48mm, 100 → 240 V ac Supply Voltage, Контроллер

Omron Temperature Controller

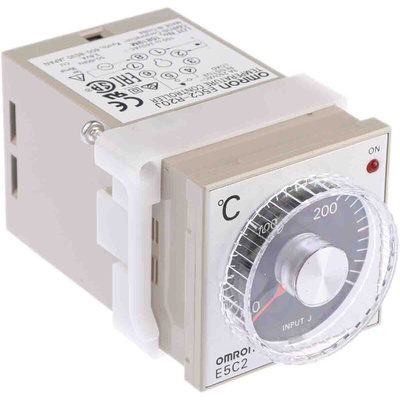

The Omron E5C2 series temperature controller has a supply voltage rating ranging from 100VAC to 240VAC. This controller has a width of 48mm and a height of 48mm. It has a J-type (0°C to 300°C) thermocouple input and relay output for ON/OFF control. The controller has thermocouple element lead wires.

Features and Benefits

Front panel offset adjustments on PD controllers

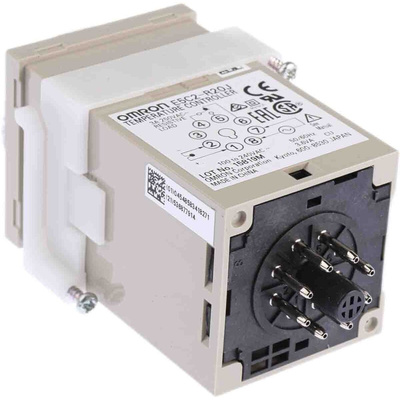

Fits standard 8-pin round sockets
Panel mounting hardware included
Compact, price effective temperature controller
Incorporates proportional control and reset adjustment function
Consecutive mounting possible using mounting adapter
Incorporates a plug-in socket, allowing DIN-track and flush mounting
Power consumption is 3.6VA

Certifications

IP40 rated (front panel)
IP00 rated (terminals)
