3RW4024-1BB04, Siemens Soft Starter, Soft Start, 5.5 kW, 400 V ac, 3 Phase, IP20, Устройство плавного пуска

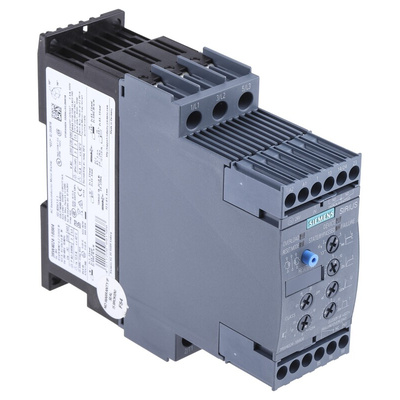

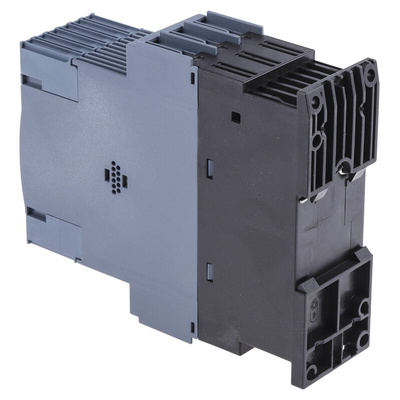

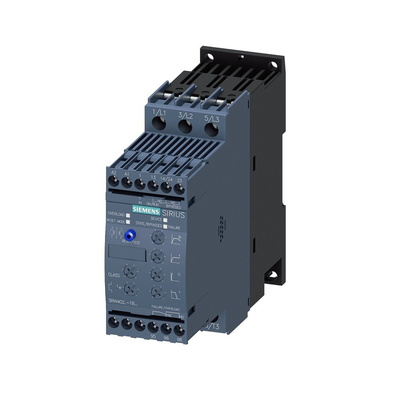

Siemens Soft Starter, 12.5A Current Rating, 3 to 5.5kW Power Output - SIRIUS Series - 3RW4024-1BB04

Safely activate your electric motors with this Siemens soft starter. By providing a 24V supply voltage, it minimises the power used to start your motors and supports efficient system activation. The device works with AC and DC motors, which means it's widely compatible with common machines. As it provides up to 5.5kW mechanical power, you can use this unit to switch heavy machinery, making it a versatile start-up option. The module's integrated motor overload protection shuts your hardware down if it detects excessive currents, resulting in minimal risk of damage from faulty equipment.

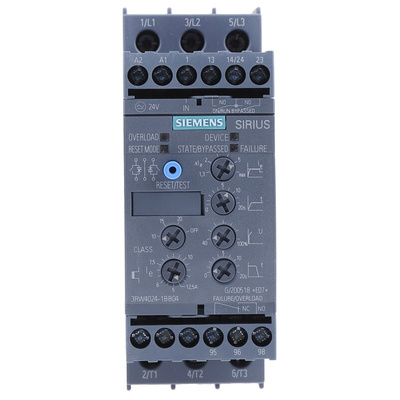

• Front-facing LED indicators for at-a-glance diagnostics
• Compact dimensions of 45 (W) x 125 (H) x 155mm (D) for easy installation in busy systems
• Broad operating temperature range from -25°C to +60°C for safe use in harsh industrial conditions

How do I reset this soft starter after a fault?

This soft starter comes with an automatic reset function that restarts the unit a short time after it detects a fault. You can manually reset it using the reset button on its front plate or by remotely disconnecting and reconnecting the supply voltage.

Soft Starters Sirius 3RW30 / 3RW40 Manual

3RW4024-1BB04 Datasheet

Instruction Sheet - 3RW4024-1BB04

Catalogue - Industrial Controls
