853.110.55, Werma BWM 853 Series Red Flashing Beacon, 24 V dc, Surface Mount, Wall Mount, LED Bulb, IP66, IP67, Маячок

LED Beacon - 853 Series

The 853 Series of LED beacons from Werma are available in 3 options, the permanent beacon, the intense double flash beacon with low power consumption and the attention grabbing EVS beacon with flickering light. All three models can be wall, base and ceiling mounted. They also save on installation time thanks to a snap-on fixing bracket: simply drill two holes, attach the fixing bracket to the wall and snap on the beacon. The cable can be fed through one of the eight self-sealing membranes without the need for any tools. Once the cable has been connected to the terminals, the lens can be clipped onto the base and secured using the four captive quick release screws

Wall, base and ceiling mounted
IP65 protection rating (with cable gland)
Life duration of up to 50,000 hrs
LED beacon in attractive quadratic form
Innovative connector to create traffic light combinations
Easy assembly due to quick release screws
Eight self-sealing membranes for cable entry without tools
Eight integrated M20 threads, no nuts required
Conforms to the Low Voltage Directive and EMC Directive
CE Mark, UL 508 standard

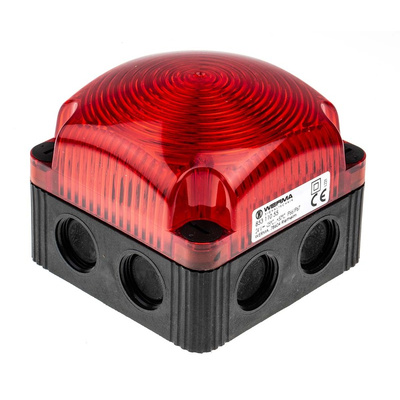

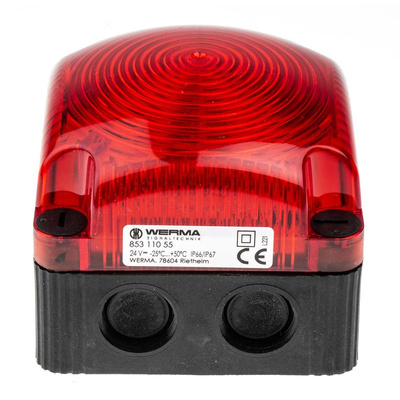

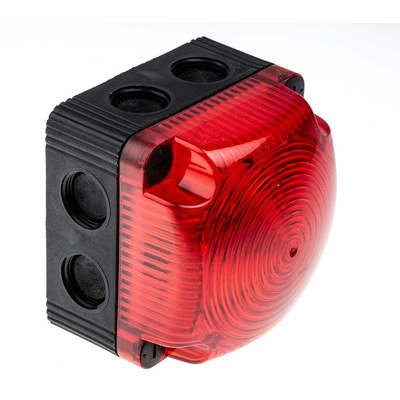

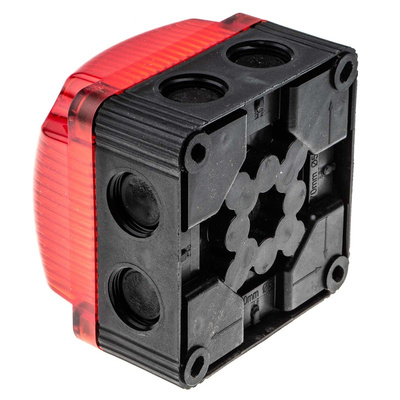

WERMA Red LED Beacon, 24V DC, 72mm Height - BWM 853 Series - 853.110.55

This WERMA LED (light-emitting diode) beacon emits a powerful warning signal to enhance safety in your workplace. Its red lens colour and double-flash light mode make it ideal for alerting personnel to danger or for indicating the status of a system. You can quickly and securely mount the beacon to a wall, ceiling or other surface using the included snap-on fixing bracket. For fast, tool-free installation, you can feed your cables through one of the beacon's eight self-sealing membranes. To create a traffic light system, use a WERMA connector (746-5022) to combine this beacon with a green beacon and an amber beacon.

Features & Benefits

• Wide operating temperature range of -25°C to +50°C for use in demanding environments
• Low current consumption of 80mA at 24V for energy-efficient operation
• Quick-release screws for fast assembly

Applications

• Industrial machinery
• Commercial buildings
• Construction sites
• Fleet vehicles
• Chemical plants

How long will this beacon last?

This beacon has a long lifespan of 50,000 hours, so you can rest assured it will last a long time and won't need to be replaced frequently.

853 Series instructions

853 LED Double Flash Beacon Data Sheet

Machine Guarding and Safety Range Overview

Datasheet - 853.110.55
