853.310.60, Werma BWM 853 Series Yellow Flashing Beacon, 115 → 230 V ac, Surface Mount, Wall Mount, LED Bulb, IP66, IP67, Маячок

LED Beacon - 853 Series

The 853 Series of LED beacons from Werma are available in 3 options, the permanent beacon, the intense double flash beacon with low power consumption and the attention grabbing EVS beacon with flickering light. All three models can be wall, base and ceiling mounted. They also save on installation time thanks to a snap-on fixing bracket: simply drill two holes, attach the fixing bracket to the wall and snap on the beacon. The cable can be fed through one of the eight self-sealing membranes without the need for any tools. Once the cable has been connected to the terminals, the lens can be clipped onto the base and secured using the four captive quick release screws

Wall, base and ceiling mounted
IP65 protection rating (with cable gland)
Life duration of up to 50,000 hrs
LED beacon in attractive quadratic form
Innovative connector to create traffic light combinations
Easy assembly due to quick release screws
Eight self-sealing membranes for cable entry without tools
Eight integrated M20 threads, no nuts required
Conforms to the Low Voltage Directive and EMC Directive
CE Mark, UL 508 standard

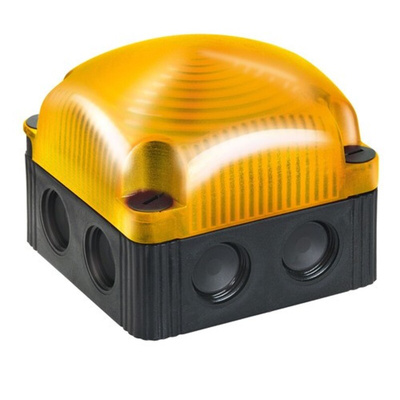

WERMA BWM 853 Series Beacon, Yellow Lens, Flashing - 853.310.60

This LED flashing beacon from WERMA is a high quality signal device designed for various industrial applications. With a yellow lens and AC power supply ranging from 115 to 230V, this beacon offers reliable performance in challenging environments. part of the WERMA BWM 853 series, this beacon delivers a powerful flashing light effect ideal for automation, electronics, electrical, and mechanical industries.

Features & Benefits

• LED technology for efficient and long-lasting operation
• Yellow lens for increased visibility and signal clarity
• AC powered for reliable performance
• surface mount and wall mount options for versatile installation
• High temperature range of up to +50°C and low temperature range of down to -25°C
• WERMA BWM 853 series for seamless integration with other devices
• Easy assembly with quick-release screws and snap-on fixing bracket
• Innovative connector for creating traffic light combinations
• Eight self-sealing membranes for cable entry without tools
• Optional use of cable gland for added protection

Applications

• Ideal for use in Industrial automation systems
• Suitable for signal indication in control rooms and manufacturing plants
• Perfect for alerting personnel in hazardous environments
• Can be used in traffic management systems for improved safety and visibility
• Suitable for indoor and outdoor applications requiring reliable signalling

Can it withstand high temperatures like +50°C?

Yes, this beacon is designed to operate efficiently in temperature ranges up to +50°C.

Will it offer reliable performance in low-temperature conditions as well?

Yes, this beacon can withstand temperatures as low as -25°C for consistent operation.

Is the yellow lens highly visible for signalling purposes?

Yes, the yellow lens provides excellent visibility and clarity for signalling applications.
