205.300.55, Werma EM 205 Series Yellow Flashing Beacon, 24 V dc, Wall Mount, Xenon Bulb, IP65, Маячок

Flashing Beacon - Series 202/205

These flashing Xenon beacons from Werma are available in 2 options, the 202 series which is base mounted with a flat seal and the 205 series which is bracket mounted with cable gland (M12x1.5mm). They have a PA-GF, high impact housing and a PC transparent lens.

Safe CAGE CLAMP® technology connection
Optimum illumination
Connection without the need to disassemble the product
IP65 protection rating
Life duration 4 x 10⁶ flashes
Conforms to the Low Voltage Directive and EMC Directive
CE Mark, UL 508 standard

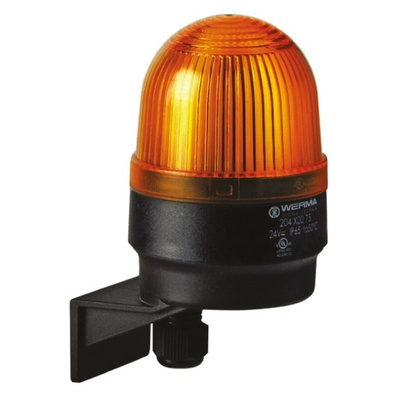

WERMA Yellow Flashing Xenon Beacon, 24V DC, 58mm Base Diameter - EM 205 Series - 205.300.55

Need a reliable safety light? This yellow flashing beacon from WERMA is ideal as a warning signal as its xenon lamp offers optimum illumination for high levels of visibility. The user-friendly unit is supplied with an integrated mounting bracket for fast, hassle-free installation. Its CAGE CLAMP® connection technology offers quick and easy wiring and lets you connect the beacon without having to first disassemble it. A housing made from glass-reinforced plastic makes this unit durable and capable of withstanding high impact for use in harsh environments.

Features & Benefits

• IP65 (ingress protection) rating for protection against low-pressure water jets and dust
• Compact dimensions of 107 (height) x 58mm (diameter) to save space
• Strong polycarbonate (PC) lens that withstands wear and impact for improved longevity
• Meets UL 508 (Underwriters' Laboratories) safety standards for industrial control equipment
• Meets the European Union Low Voltage Directive standards for improved safety against electrical shock

Applications

• Laboratories and testing facilities
• Construction and earth moving equipment
• Storage warehouses

What are the advantages of a xenon bulb?

A xenon bulb is a high-intensity lamp that delivers a clear white-blue light. It's frequently chosen for its superior clarity and brightness as well as its low power consumption.
