205.300.68, Werma EM 205 Series Yellow Flashing Beacon, 230 V ac, Wall Mount, Xenon Bulb, IP65, Маячок

Flashing Beacon - Series 202/205

These flashing Xenon beacons from Werma are available in 2 options, the 202 series which is base mounted with a flat seal and the 205 series which is bracket mounted with cable gland (M12x1.5mm). They have a PA-GF, high impact housing and a PC transparent lens.

Safe CAGE CLAMP® technology connection
Optimum illumination
Connection without the need to disassemble the product
IP65 protection rating
Life duration 4 x 10⁶ flashes
Conforms to the Low Voltage Directive and EMC Directive
CE Mark, UL 508 standard

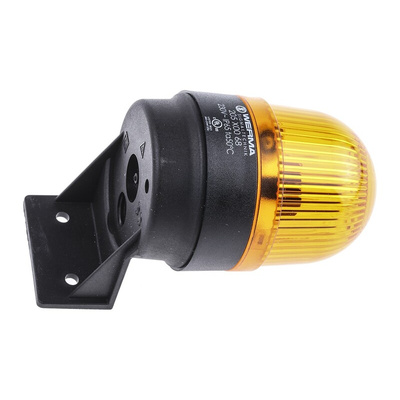

WERMA Yellow Xenon Beacon, 230V AC, 107mm Height - EM 205 Series - 205.300.68

Use this WERMA xenon beacon for a highly visible alert in your workplace. The yellow colour indicates to personnel that there's a potential hazard or that a change in machine operation is occurring. An integrated wall bracket makes it simple to secure this beacon to a wall in your workplace. The beacon accommodates cables ranging in diameter from 3 to 6mm for versatility. The housing is made of a robust glass-filled polyamide (PA-GF) material that can withstand high levels of impact for use in harsh industrial environments.

Features & Benefits

• Xenon gas bulb offers a long lifespan of 4,000,000 flashes for long-lasting use
• IP65 (ingress protection) rating certifies the unit is dust-tight and protected from low-pressure water jets
• Broad operating temperature range of -20°C to +50°C for use in demanding environments
• Polycarbonate (PC) lens material is UV (ultraviolet) stable for durability in sunlight

Applications

• Utility vehicles
• Agricultural machines
• Construction sites
• Commercial buildings

How much current does this beacon consume?

This beacon has a low current consumption of just 30mA, so it's an energy-efficient choice.

202_205 Flashing Beacon Data Sheet

200 series Instruction Sheet

Machine Guarding and Safety Range Overview

Datasheet

Datasheet - 205.300.68
