6XV1440-4AH50, Siemens Connecting Cable for Use with 277 Series Mobile Panel, 24 V

Siemens Connecting Cable For Use With SIMATIC 170 and 277 Series, 5m Length, Red Sheath - 6XV1440-4AH50

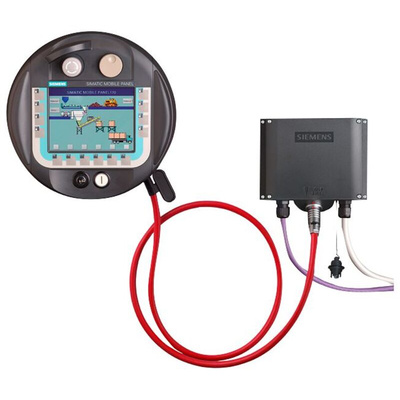

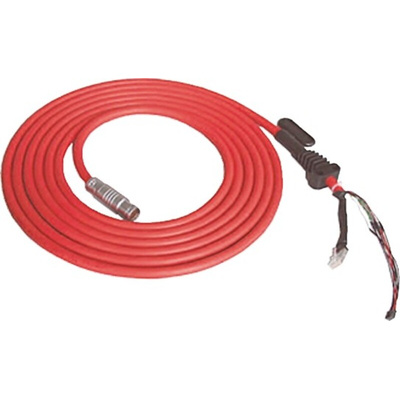

Link your system to your mobile panel with this connecting cable from Siemens. As it's 5 metres long, it's a good choice for connecting units set apart in larger workspaces. The PUR sheath is flame-resistant, so boosts safety in the event of a fire, while a bending radius of 45mm means you can easily install it in tight spaces and around corners. Once installed, this cable has an IP65 rating, meaning it's dust-tight and protected against low-pressure water jets. You can use it in applications such as robotics and industrial automation.

Features & Benefits

• Wide operating temperature range between 0°C and +55°C for use in demanding environments
• Red sheath colour means it's easy to identify in a colour-coded setup

What's the supply voltage of this cable?

This cable has a supply voltage of 24V DC, making it a good choice for use in low-power applications.

What mobile panels can I use this cable with?

This cable is compatible with mobile panels from the SIMATIC 170 and 277 series, so it's a versatile choice.

Siemens SIMATIC 170 Series Panels

The TP177A can be connected to the Simatic S7-200/-300/-400 PLC's with a standard MPI or Profibus cable. Drivers for connecting the OP77B to additional PLC's are available; the necessary interfaces are already onboard.,In addition the TP177B and OP177B can use standard multimedia cards to expand the memory available for recipe data and project backups. The TP177B and OP177B use the Windows CE operating system and feature a USB interface for the connecting of a printer or downloading a project.,The colour variants feature an integral Profinet I/O interface
