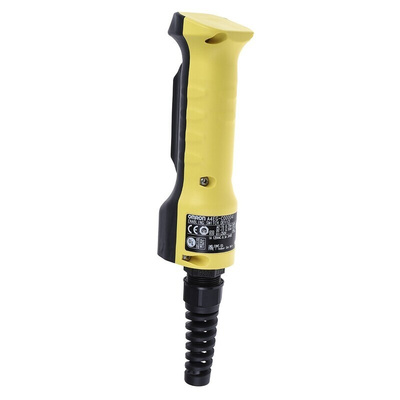

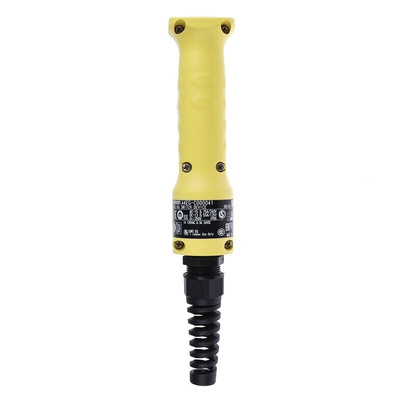

A4EG-C000041, Omron A4EG Series Safety Enabling Switch, 3 Position, 2 NO + 1 NC, IP66, Выключатель

Enabling Switch, A4EG Series

The A4EG enabling grip switch when used in conjunction with the G9SX-GS ensures the safety of machine operators during setting and maintenance operations. The operator can start and stop the machine while movements are being performed at reduced speed using the grip switch and in the event of danger, to give an emergency stop instruction. If the enabling switch is released or if the operators grip tightens the machine will be stopped immediately.

Ergonomic design
Three easily discernable positions
Equipped with conduit connector
Ingress Protection: IP66 for A4EG-C000041; IP65 for A4EG-BE2R041 and A4EG-BM2B041

Omron Enabling Grip Switch

The Omron A4EG series enabling grip switch is a high-tech device used with the G9SX-GS for the safety of machine operators during setting and maintenance operations. It has a voltage rating of 125VAC and a current rating of 1A. The operator can start and stop the machine with movements at less speed using the grip switch and also in the event of danger, to give an emergency stop instruction. Additionally, if the enabling switch is released or if the operator’s grip tightens, the machine will stop immediately.
It has a contact configuration of 1NC.

Features and Benefits

Ergonomic design
Three easily discernible positions
Equipped with conduit connector
Operating temperature ranges between −10°C to 55°C

Certifications

IP66 rated
UL 508
CSA C22.2 No.14
EN 60947-5-1

Enabling Switch
