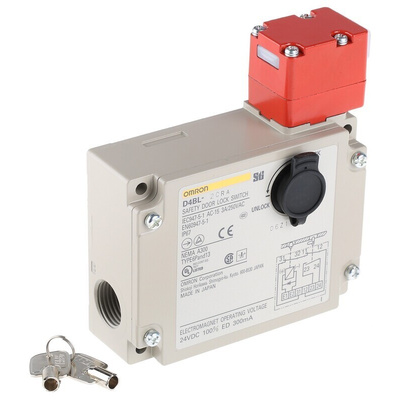

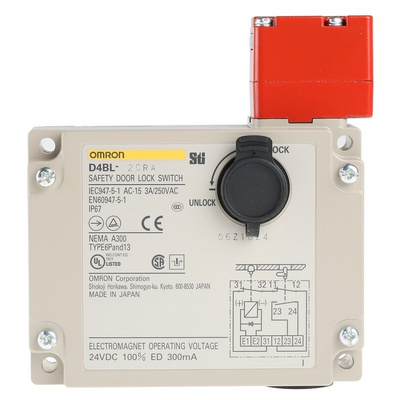

D4BL-2CRA, Omron D4BL Solenoid Interlock Switch Power to Unlock 24 V dc

Omron Safety-door Switch

The Omron power to unlock safety-door switch has a supply voltage rating of 24VDC and 1NC/1NO contact configuration. It achieves a high level of safety using a mechanism where the lock is only released when voltage is applied to the solenoid. The mechanical lock is applied automatically when the operation key is inserted.
Note:
Actuators must be purchased separately. Stock no. 746-7208 incorporates an easy-to-see indicator for monitoring.

Features and Benefits

The switch contact is opened by a direct opening mechanism (NC contacts only) when the protective cover is opened Auxiliary release key ensures easy maintenance and unlocks the door in the case of a power failure

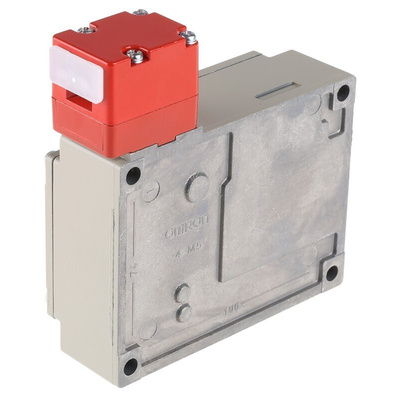

Tough aluminium die-cast body incorporating a switch box with a high degree of protection
Equipped with a horizontal and vertical conduit opening
The mounting direction of the head can be changed to allow the operation key to be inserted from four directions
Conduit size is G1/2
Mechanical lock and solenoid release

Certifications

IP67 rated
UL approved
CSA certified
CCC certified
BIA certified
SUVA certified
