F3S-TGR-NLPC-21-M1J8, Omron F3S-TGR-N_C Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, NO/2NC, M12, Выключатель

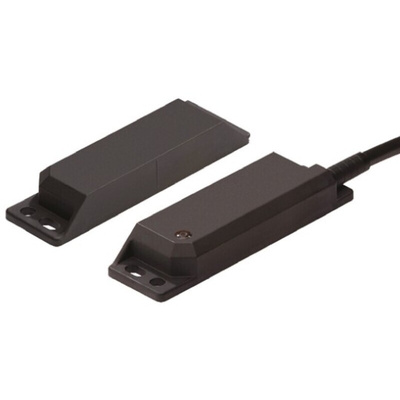

Omron Non-Contact Switch

The Omron F3S-TGR-N_C series non-contact switch has a switching distance of 17mm and 24VDC supply voltage. This is an elongated sensor type with M12, 8-pin cable connection. It has 2 normally closed contacts and 1 normally open contact. This switch is designed to interlock hinged, sliding or removable guard doors. Both plastic and stainless steel switches are available but the latter is ideally suited to high hygiene demands in the food industry. It has a long sensing range to avoid false signals resulting from an ill-aligned door.
Note:
Models F3S-TGR-N_C are coded. Actuator is included. For a suitable controller see the G9SA or G9SB from Omron or the NE1A DeviceNet system.

Features and Benefits

Contactless operation for no abrasion
Excellent coverage of mechanical tolerances
Can operate behind stainless steel fittings
Screw hole covers

Certifications

IP67 rated
EN 954-1
EN ISO13849-1
EN 60204-1
EN/IEC 60947-5-3
UL 508
CSA C22.2
BS 5304
EN1088-1
