RS PRO Steel Wall Box, IP65, 400 mm x 300 mm x 200mm, Настенный шкаф

RS Pro IP65 Steel Wall Boxes

Brought to you by RS Pro, a high quality steel wall mounted enclosure. Rated at IP65, the level of protection provided by these box ensures the contents will be safely stored and protected. The door of the wall box itself is structurally well made and is tightly sealed once closed. Suitable for various storage applications, all models are highly reliable and excellent quality.

Features and Benefits

• Steel structure, coated with an epoxy polyester powder
• IP65 rating
• If the wall box is inverted, the hinged door can open from either side
• Double lipped edges
• Polyurethane seal door seal

How much protection can these wall mount boxes provide?

Having an ingress protection of IP65, all models are completely protected against any dust which may harm sensitive equipment. No dirt or small particles will be able to enter the enclosure whilst sealed. The excellent protection rating also ensures great water resistance and sufficiency against low pressure water jets.

Is this wall box lockable?

This particular box comes with a standard key lock for extra security and safety. Having a wall box under lock and key is useful in various situations where the contents either need to be secured or only accessed by experienced individuals

If using this enclosure as a storage box, what is supplied?

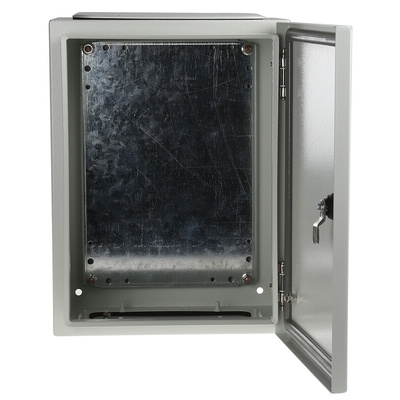

This steel wall box comes standard with a glavanised steel back plate, earth studs and top & bottom gland plates. A number of additional accessories can be purchased separately, including:

• 746-7380 - which is a Key locking kit
• 746-7384 - An earth strap, for grounding the box itself if the content and electrical
• 746-7387 - Mounting brackets, which are suitable for fixing the box to a suitable surface or wall

What is a wall box?

Wall boxes are a type of enclosure which can be mounted to a wall, by brackets or into panel cut outs as an example. These types of boxes are used in various applications for storage of items or sensitive electrical equipment like wiring or circuit boards. The boxes have various ways of being covered, such as locking, screwed or simple latches. Regardless of the need, there will be the right RS Pro wall box at competitive prices to suit the requirements.

What are the dimensions of this wall mounted enclosure?

The correct dimensions for this specific wall box are 200 mm x 400 mm x 300 mm
