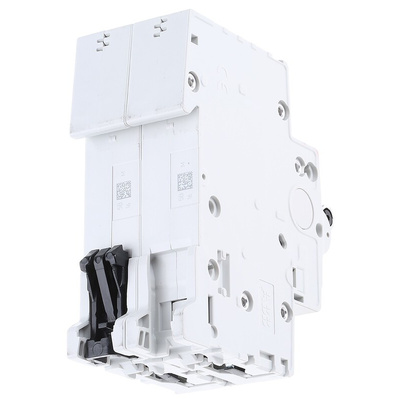

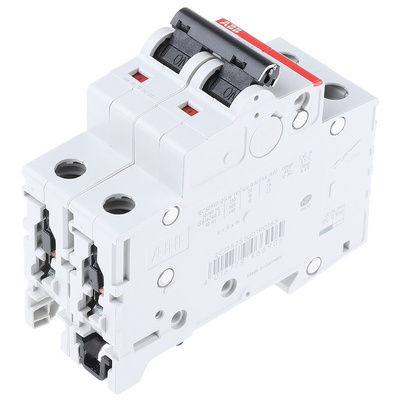

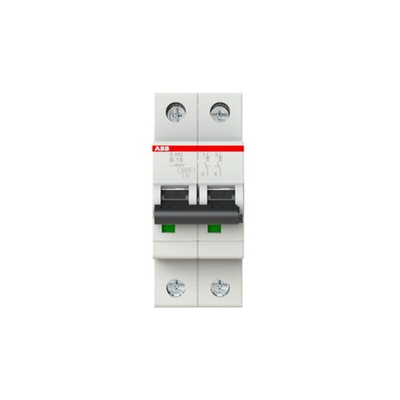

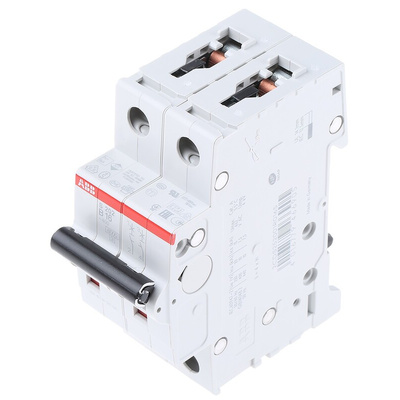

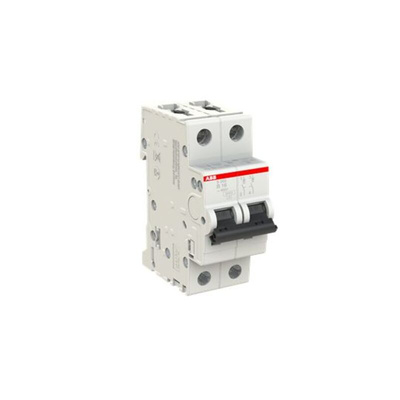

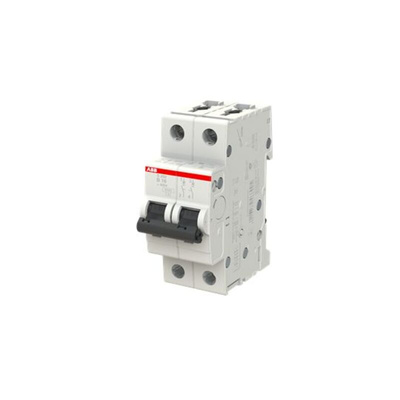

2CDS252001R0165 S202-B16, ABB System Pro M Compact S200 MCB, 2P, 16A Curve B, 400V AC, 110V DC, 6 kA Breaking Capacity

ABB MCB, Mechanical Service Life of 20,000 Cycles, 4kV Rated Impulse Withstand Voltage - S202-B16

Use this MCB from ABB to safeguard your equipment from short circuits and overload currents. Thanks to its 2-pole construction, you can use it to protect 2 separate circuits at the same time. With dimensions of 69 (L) x 35 (W) x 88mm (H), it's a compact choice for use in setups with limited space. Type-B tripping characteristics mean the unit cuts power at 3 to 5 times its rated current of 16A. This makes it suitable for sensitive equipment like domestic appliances.

Features & Benefits

• IP20 rating means that it's finger-safe and protected from objects larger than 12mm in size
• Breaking capacity of 6kA to handle sudden current surges without suffering damage
• Can be mounted in any position for flexibility to meet your design needs
• Screw termination method makes installation simple without needing complex tools

Applications

• Office buildings
• Residential wiring

What maintenance does this MCB need?

To ensure this MCB works at its best, periodically check and tighten loose fasteners and ensure there's no debris on the contacts. You should carry out maintenance at least once a year.

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.
