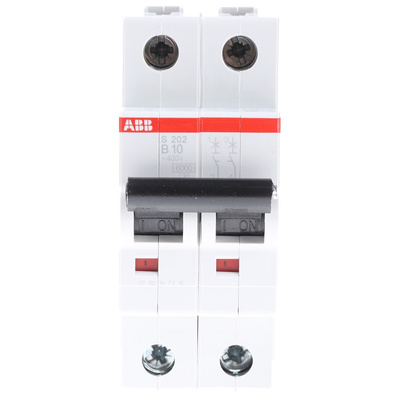

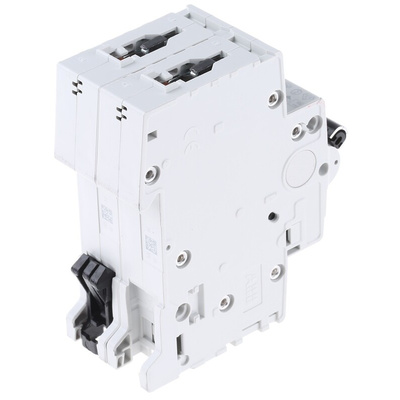

2CDS252001R0105 S202-B10, ABB System Pro M Compact S200 MCB, 2P, 10A Curve B, 400V AC, 6 kA Breaking Capacity

ABB 2-Pole MCB, 400V AC Voltage Rating, 6kA Breaking Capacity - S200 Series - S202-B10

To ensure protection against overloads and short circuits, choose this MCB with thermal and electromagnetic mechanisms from ABB. It's type-B tripping characteristic is suitable for domestic, commercial and light-industrial applications, making it a versatile option. The unit's innovative design means you can base-mount auxiliary circuit connections to save space. Twin terminal slots are capable of accepting two feeds to provide increased installation flexibility. As a modular MCB, it works with System Pro M Compact accessories, enabling the custom-building of safety systems.

Features & Benefits

• Expected electric lifespan of 20,000 cycles for durability
• Circuit information laser-printed on housing to aid installation and maintenance
• IP20 rating for finger-proof terminals for safe installation
• Labelled switch positions on toggles and red and green status indicators for easy use
• Screw terminals to keep connections reliably secured

Applications

• Domestic consumer units
• Building infrastructure
• Distribution boards and power management

How can I improve the ingress protection of this MCB?

Mounting this MCB in a covered enclosure will boost the ingress protection rating to IP40, preventing wires and tools penetrating the workings.

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.

Datasheet - 2CDS252001R0105 S202-B10

Instruction Sheet - Miniature Circuit Breaker

Catalogue - Miniature Circuit-Breakers

End of life instructions S200, S200L, SZ200, SC200, S200M

Product Environmental Profile
