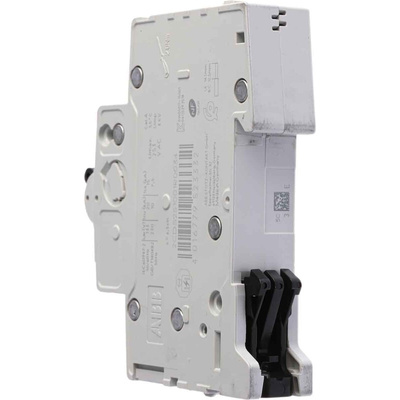

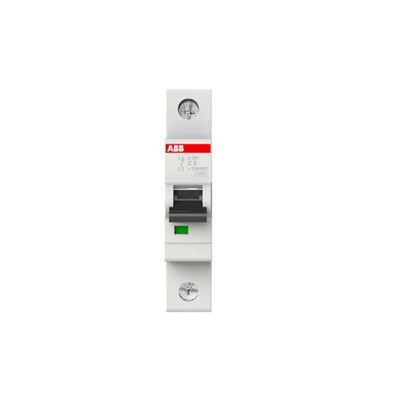

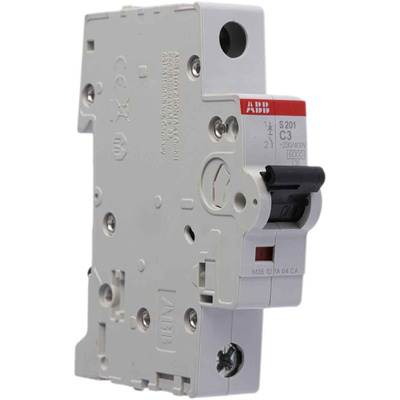

2CDS251001R0034 S201-C3, ABB System Pro M Compact S200 MCB, 1P, 3A Curve C, 230V AC, 72V DC, 6 kA Breaking Capacity

ABB System Pro M Compact S200 Single Pole Type C 6 kA

ABB System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electro mechanic tripping mechanism for short circuit protection. All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space

Features and Benefits

•Extra-wide and complete range of MCBs to cover most applications and markets
•Space and time saving thanks to the unique bottom-fixing auxiliary contact
•Meeting worldwide standards
•For domestic or small commercial installations up to 6 kA breaking capacity
•IEC/EN 60898-1, IEC/EN 60947-2
•1 Pole

Standards

IEC 60898 - Relates to Low Voltage Circuit Breakers for use in household and similar
Installations. In the UK traditionally known as miniature circuit breakers
(MCB’s).
IEC 60947-2 Relates to Low Voltage Circuit Breakers for use in industrial and similar
Installations. In the UK traditionally known as moulded case circuit breakers
(MCCB’s) and also air circuit breakers (ACB’s).

Q: What is Tripping Curve C

A:Curve C: Tripping: 5 to 10 times the rated current
Applications: protection of circuits and general applications

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically RS stock no. 539-1553.

ABB MCB, 1 Pole, 2.8Nm Tightening Torque - S200 Series - S201-C3

Provide overcurrent and short-circuit protection to your electrical systems with this miniature circuit breaker from ABB. It has a thermal-magnetic mechanism that cuts power to your network in the event of a fault, preventing fire outbreaks and electric shocks for improved safety. As it has a 3A current rating, this unit is suitable for low-current applications. Its breaking capacity of 6kA assures you that it can interrupt high currents without suffering damage, making it a robust safety unit. The DIN rail mounting design means you don't need tools to set it up, saving time and effort.

• Low power rating of 1.3W for energy efficiency
• Mechanical endurance of 20,000 operating cycles for long-term performance
• 2.8Nm tightening torque for secure fastening of connecting cables
• Wide operating temperature range between -25°C and +55°C for use in challenging settings
• Can accommodate wire sizes between 18 and 4AWG for versatility

Applications

• Industrial cooling systems
• Chemical laboratories
• Mechanical workshops

Is this MCB durable?

Yes, its thermoplastic housing can withstand scratches and mechanical impact, so it delivers long-term performance in harsh settings.

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.
