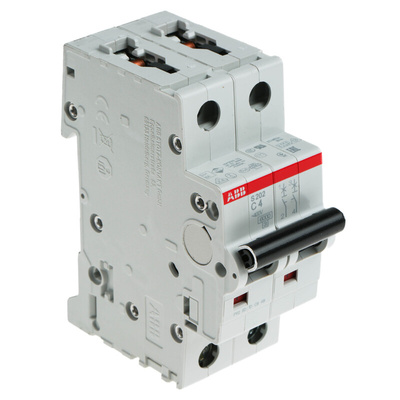

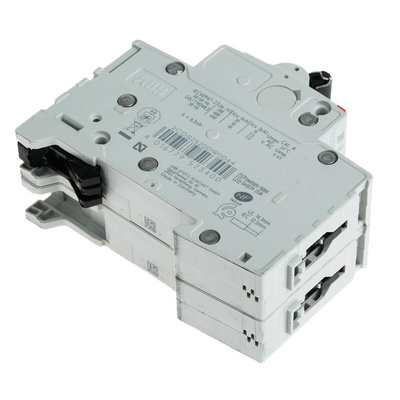

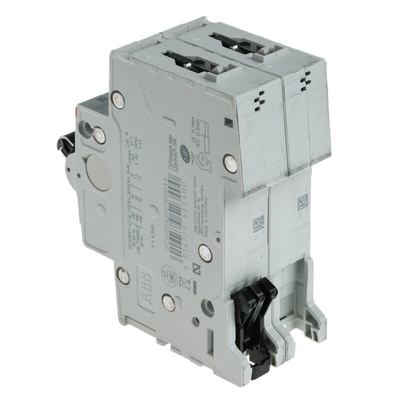

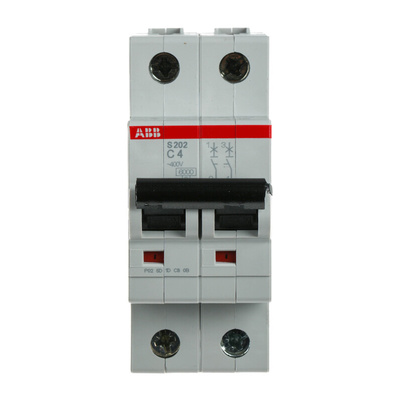

2CDS252001R0044 S202-C4, ABB System Pro M Compact S200 MCB, 2P, 4A Curve C, 400V AC, 6 kA Breaking Capacity

ABB 2-Pole MCB, 400V AC Voltage Rating, 6kA Breaking Capacity - S200 Series - S202-C4

Safeguard your electrical circuits against overcurrent with this MCB from ABB. It integrates two different tripping mechanisms – thermal and electro-mechanical tripping – to protect your equipment against damage and prevent unnecessary operational downtime. The unit's compact dimensions of 88 (height) x 35 (width) x 69mm (depth) mean it's suited to distribution boards and panels where space is tight. Contact position indicators coloured green and red show when the breaker is on or off to promote safety. DIN-rail mounting capability helps you order your system with minimal installation time.

Features & Benefits

• Innovative bottom-fixing auxiliary contact to save space
• Operating temperature range from -25°C to +55°C for use in harsh conditions

Applications

• Food and beverage processing plants
• Industrial processing
• Transport applications

Where can I use an MCB with 6kA breaking capacity?

This 6kA MCB from ABB is designed for use it in small industrial and commercial installations. It's also suitable for domestic electric networks.

What does a type-C tripping curve mean?

A type-C tripping curve means the device is suitable for high-inductive loads and will trip instantly at a rate of 5 to 10 times its rated current of 4A.

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.

S202-C4 Data Sheet

Instruction Sheet - Miniature Circuit Breaker

End of life instructions S200, S200L, SZ200, SC200, S200M

Product Environmental Profile
