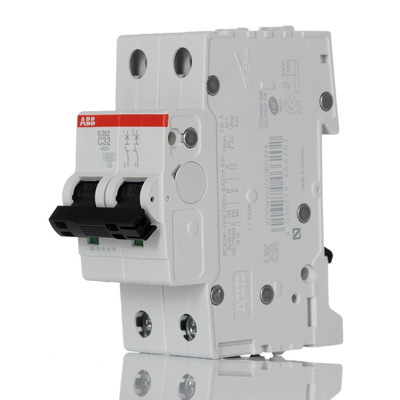

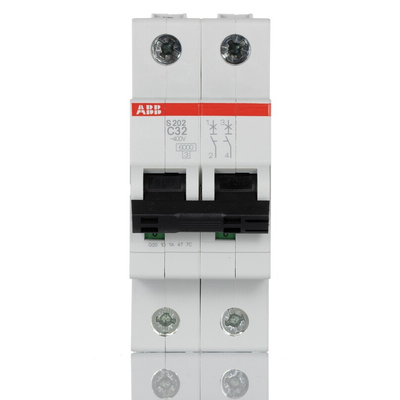

2CDS252001R0324 S202-C32, ABB System Pro M Compact S200 MCB, 2P, 32A Curve C, 400V AC, 125V DC, 6 kA Breaking Capacity

ABB MCB, 69mm Length, 2.8Nm Tightening Torque - S200 Series - 2CDS252001R0324 S202-C32

Protect your machinery from electrical hazards with this MCB from ABB. To prevent damage to your equipment, it quickly stops the flow of electricity if there's a short circuit. The unit has type-C tripping characteristics, meaning it trips when the supply current is 5 to 10 times higher than its 32A rating. For maximum safety, the breaker uses a delayed thermal tripping mechanism for overload protection and an electro-mechanical tripping mechanism for short-circuit protection. An impulse withstand voltage rating of 4kV means it handles sudden power spikes without suffering damage.

Features & Benefits

• Current rating of 32A is suitable for use with demanding applications
• Mountable in any position, depending on your setup
• Safe to use in challenging settings, thanks to an operating temperature range between -25°C and +55°C
• Mechanical endurance of 20,000 cycles means you get long-term service

Applications

• Telecommunications industry
• Cooling systems
• Warehousing and distribution centres

How do I monitor this device?

This component has red and green ON/OFF position indicators, so you can easily keep an eye on the status of your equipment and check at a glance if it's tripped.

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.

Datasheet

Catalogue - Modular Din Rail Components

Datasheet - 2CDS252001R0324 S202-C32

End of life instructions S200, S200L, SZ200, SC200, S200M

Product Environmental Profile
