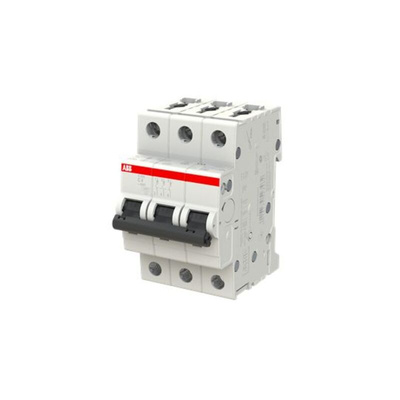

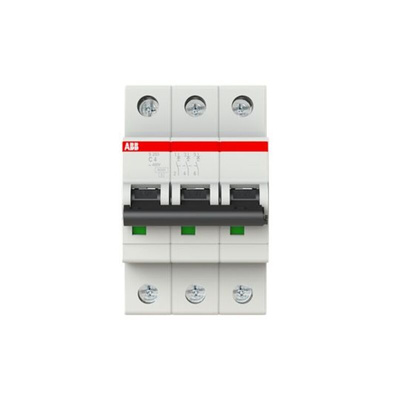

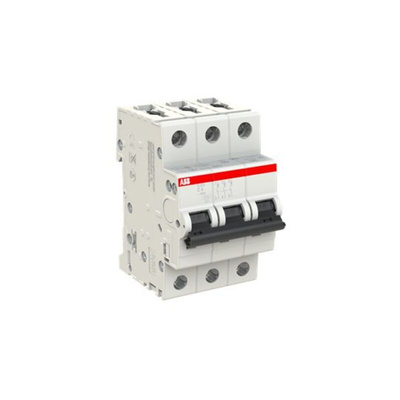

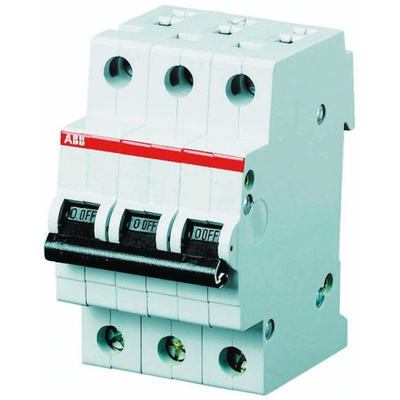

2CDS253001R0044 S203-C4, ABB System Pro M Compact S200 MCB, 3P, 4A Curve C, 400V AC, 110V DC, 6 kA Breaking Capacity

ABB MCB, Type C Tripping, 4kV Rated Impulse Withstand Voltage - S200 Series - S203-C4

Looking for a solution to safeguard equipment against damage caused by overcurrent? This 3-pole MCB from ABB uses a thermal and electromagnetic tripping mechanism to protect against currents exceeding 6kA. Its compact size of 69 (L) x 52.5 (W) x 88mm (H) makes fitting it in a tightly packed distribution board straightforward. Simply snap the device onto a DIN rail for quick and tool-free installation. An extended service life of 20,000 cycles means this device delivers long-lasting performance.

Features & Benefits

• Wide operating temperature range between -25°C and +55°C for use in challenging conditions
• IP20 rating indicates the device is touch-proof for improved electrical safety
• Toggle switches for easy contact position identification and operation

Applications

• Fluorescent lighting systems
• Residential electrical networks
• Industrial fans and pumps
• Lifting equipment

What's the current rating and tripping curve of this MCB?

The unit has a current rating of 4A and a type C-tripping curve, meaning it trips when it received current at 5 to 10 times more than 4A.

How heavy is this MCB?

The breaker weighs 375g, so it's a lightweight unit and won't stress the mounting surface.
