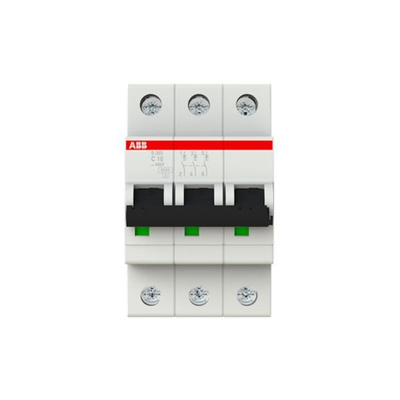

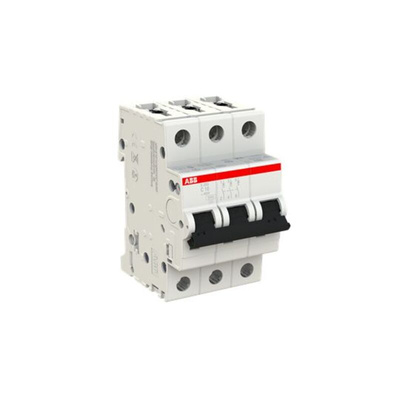

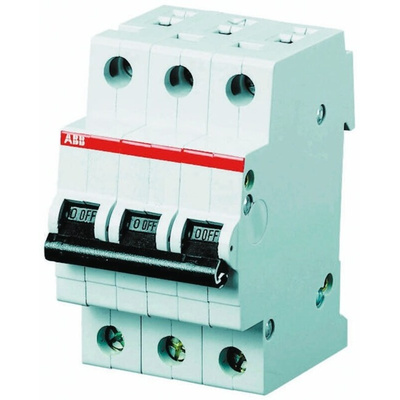

2CDS253001R0104 S203-C10, ABB System Pro M Compact S200 MCB, 3P, 10A Curve C, 400V AC, 110V DC, 6 kA Breaking Capacity

ABB MCB, 6kA Breaking Capacity, Screw Terminals - S200 Series - S203-C10

This MCB from ABB is a 3-pole, type-C overcurrent solution from ABB. That means it protects users and up to 3 circuits at once against surges anywhere between 5 and 10 times the 10A rated current. Type-C MCBs are typically used in commercial and industrial environments as their high surge resistance makes them safe for use with load-drawing equipment like motors and pumps. This robust unit's high breaking capacity means you can rely on it to withstand up to 6kA of current without failing or releasing dangerous arcs of electricity.

Features & Benefits

• IP20 rating indicates the terminals are finger-safe
• Snap-on DIN rail mounting makes installation quick and tool-free
• Coil tripped by an electromagnetic process also provides short-circuit protection for safety
• Compact dimensions of 88 (L) x 53 (W) x 69mm (D) mean it fits easily in crowded distribution panels

Applications

• Construction industry
• Welding
• Industrial lighting
• Factory automation

Is this MCB suitable for use in harsh temperature conditions?

Yes. This MCB's broad operating temperature range of -25°C to +55°C means you can use it safely in extreme temperatures.

Datasheet - 2CDS253001R0104 S203-C10

Instruction Sheet - Miniature Circuit Breaker

Datasheet - S203-C10

Catalogue - Din-Rail Components

End of life instructions S200, S200L, SZ200, SC200, S200M

Product Environmental Profile
