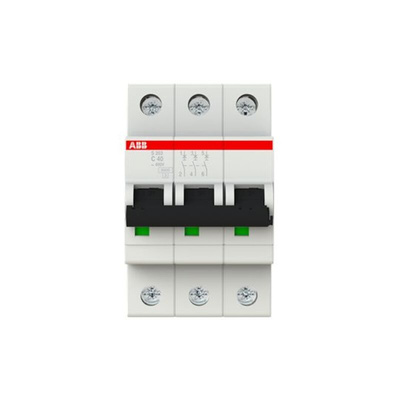

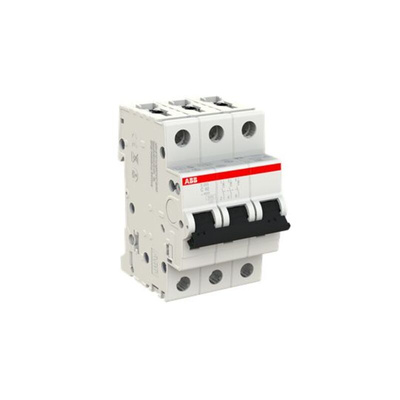

2CDS253001R0404 S203-C40, ABB System Pro M Compact S200 MCB, 3P, 40A Curve C, 400V AC, 12V DC, 6 kA Breaking Capacity

Type C Triple Pole 6kA - System Pro M Compact

ABB MCB, DIN Rail Mounting, 12V AC/DCMinimum Operating Voltage - S200 Series - S203-C40

Install this 3-pole MCB from ABB to ensure your electrical circuit automatically switches off when faults occur. It uses an electromechanical and a thermal mechanism to provide both overload and short-circuit protection. The breaker has type-C tripping characteristics, meaning it instantly trips the circuit when it detects loads that are between five and ten times the rated current of 40A. As it's mountable in any position and works with AC and DC input voltages, it's a versatile option. It's also possible to mount an auxiliary contact on the bottom to save cabinet space.

• Red and green indicators make it easy to tell if circuits are on or off
• Mechanical lifespan of 20,000 cycles assures you it's durable
• Integrated rear clip for quick mounting on a DIN rail

Applications

• Schools and colleges
• Commercial properties
• Factories

What type of terminals does this MCB have?

This MCB has screw terminals, so you can achieve a secure wire attachment with a size two Pozidriv screwdriver. They're failsafe bi-directional cylinder-lift terminals, to help minimise wiring errors.

Datasheet - 2CDS253001R0404 S203-C40

Catalogue - Miniature Circuit-Breakers

Datasheet - S203-C40

End of life instructions S200, S200L, SZ200, SC200, S200M

Product Environmental Profile
