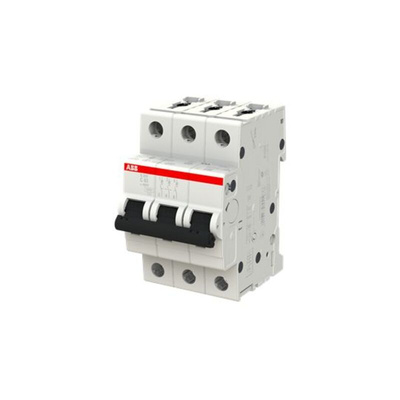

2CDS253001R0634 S203-C63, ABB System Pro M Compact S200 MCB, 3P, 63A Curve C, 400V AC, 12V DC, 6 kA Breaking Capacity

Type C Triple Pole 6kA - System Pro M Compact

ABB MCB, DIN Rail Mounting, 53mm Width - S200 Series - S203-C63

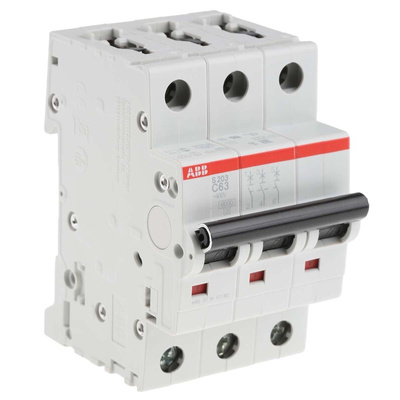

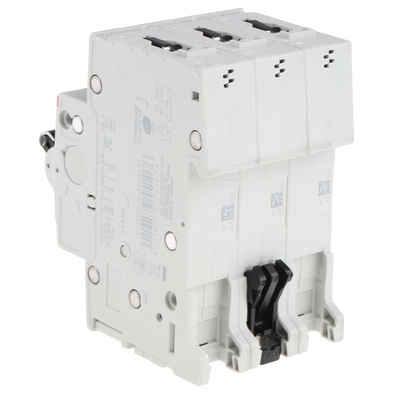

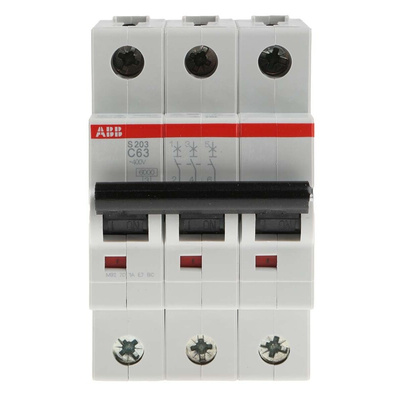

Reliably protect low-voltage circuits with this 3-pole MCB from ABB. Built-in electromechanical and thermal mechanisms safely handle overloads and short circuits to help you operate electrical equipment safely. Type-C tripping characteristics ensure the device trips instantly when it detects loads between five and ten times the rated current of 63A. To ensure the circuit status is always clear, the MCB has red and green contact position indicators on the front. This breaker is mountable in any position to give you installation flexibility and has a rear clip to keep it secured on your DIN rail.

• Wide operating temperature range between -25°C and +55°C for use in demanding environments
• Accepts bottom-fitting auxiliary contacts to save you cabinet space
• Uses failsafe bi-directional cylinder-lift terminals to reduce wiring errors

Applications

• Supermarkets
• Hospitality venues
• Offices

Does this MCB have a long expected lifespan?

Yes. This MCB has an electrical lifespan of 10,000 AC cycles and a mechanical durability of 20,000 cycles, so you can rely on it for long-term protection against hazards.

Datasheet - 2CDS253001R0634 S203-C63

Catalogue - Miniature Circuit-Breakers

Datasheet - S203-C63

End of life instructions S200, S200L, SZ200, SC200, S200M

Product Environmental Profile
