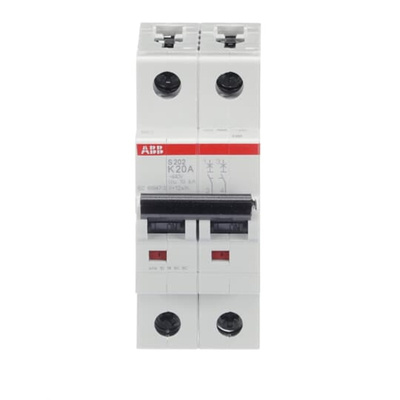

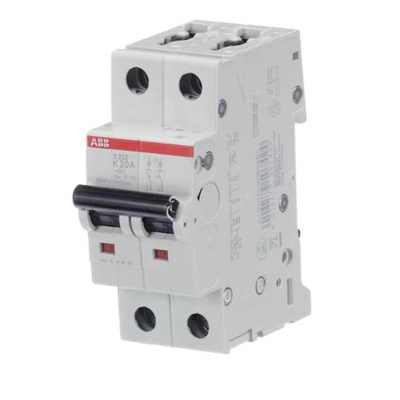

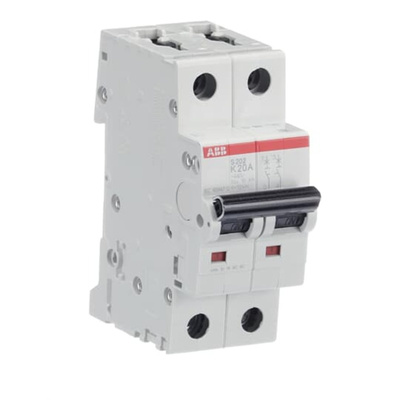

2CDS252001R0487 S202-K20, ABB System Pro M Compact S200 MCB, 2P, 20A Curve K, 400V AC, 125V DC, 6 kA Breaking Capacity

ABB MCB, 5.4W Power Loss, 20,000 Cycles Mechanical Endurance - S200 Series - 2CDS252001R0487 S202-K20

Need a compact way to shield your devices from electrical hazards? Go for this MCB from ABB. A dual-pole configuration means it controls two circuits simultaneously and reduces the wiring needed in your system. It has type-K tripping characteristics, meaning it breaks when the supply current is 8 to 12 times its 20A current rating, so it's suitable for high-power electrical setups. An IP40 rating applies when the unit's installed in a closed enclosure, indicating that it’s safe to touch and protected from tools and wires larger than 1mm.

Features & Benefits

• Screw terminals for convenient installation with a screwdriver
• Mechanical endurance of 20,000 cycles for long-lasting service
• Compact dimensions of 69 (L) x 35 (W) x 88mm (H) mean it slots easily into smaller enclosures
• Performs reliably in demanding conditions, thanks to an operating temperature range between -25°C and +55°C
• Low power loss of 5.4W for energy efficiency

Applications

• Mining equipment
• Maritime and offshore facilities
• Construction sites

Is this component shielded from voltage spikes?

Yes, this device has a rated impulse withstand voltage of 4kV, so it takes power spikes in its stride, without being damaged.

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.
