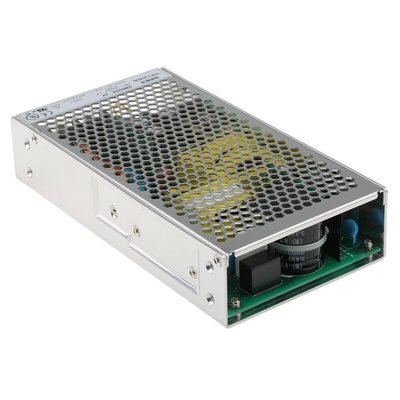

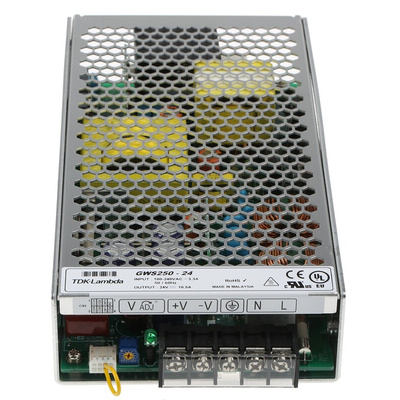

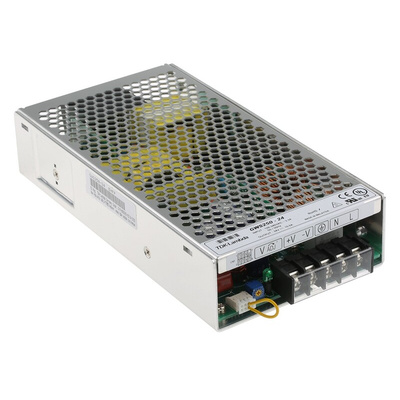

TDK-Lambda Switching Power Supply, GWS250-24, 24V dc, 10.5A, 252W, 1 Output, 120 → 373 V dc, 85 → 265 V, Источник питания

TDK-Lambda Switch Mode Power Supply

The TDK-Lambda GWS250 series 252W single output AC to DC embedded switch mode power supply has an output current rating of 10.5A at 24VDC. It has a universal input supply voltage rating from 85VAC to 264VAC and 120VDC to 373VDC. This switch-mode AC-DC power supply has a compact design is convection cooled and offer a high power density. It has low standby power and also designed to target all ErP compliant applications.
Note:
Power derates: above 50°C.

Features and Benefits

High power density
Targets all ErP compliant applications
High efficiency of up to 92%
Less than 0.5W standby power draw
Width is105mm and length is 198mm foot print and 1U (41mm) height
Convection cooled 250W
Over temperature and overcurrent protection
Remote ON/ OFF
Programmable output voltage
DC GOOD signal

Applications

Industrial
LED information displays
Digital signage
Traffic controls
Automated service kiosks
Test and measurement
Entertainment systems
Communications
Broadcasting

Certifications

UL60950-1
CSA C22.2 No.60950-1-07 (2nd edition)
EN60950-1
IEC60950-1 (2nd edition)
CE certified
UL approved
