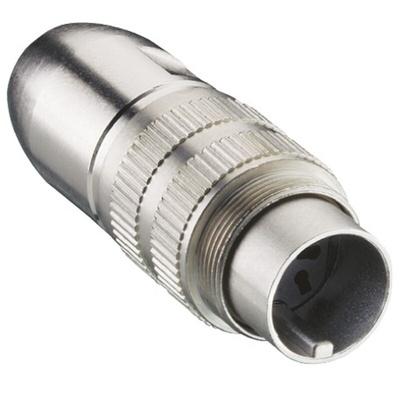

0365 06-1, Lumberg, 0365 6 Pole M16 Connector Housing IP68, Разъем

0365 Series 3G-4G Empty Circular Plug Connectors, 360 Degree Shielding

Lumberg 0365 Series 3G-4G empty circular plug connectors feature a threaded joint and 360 degree shielding, ideal for use within the mobile communications network structure in applications such as base stations, antenna remote electrical tilts (RET), bias tees, tower-mounted amplifiers (TMA), surge protections and similar applications that require a robust shielded connector. When mated these 3G-4G circular connectors offer protection up to IP68 once the counterparts are screwed together. Connector crimp contacts are available in gilded or silvered versions.

Connectors compliant with AISG specification
Protection IP68
Salt mist resistant
UV resistant
Wire section 0.25 to 0.75 mm² (23 - 18 AWG)
Temperature range -40 to +85 °C
NBR gasket material

Note

For crimp contacts see 7480967 and 7480964

Standards

IEC 60130-9

Lumberg Connectors Standard and SWUM™ - IP68

Lumberg Connectors Standard and SWUM™ - IP68 Chassis and cable mount plugs and sockets up to 12 way, with or without 360° shielding. Typical applications are control engineering, automation technology and medical instrumentation.

Empty plug housing Data Sheet
