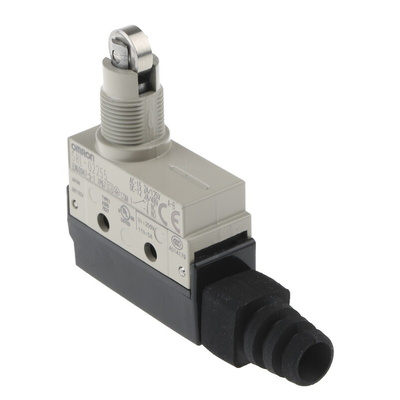

SHL-Q2255, Omron SHL Series Roller Plunger Limit Switch, NO/NC, IP67, SPDT, 480V ac Max, ac 2 A, dc 200mA Max

Enclosed Switch Hinge Roller Levers / Plungers

Incorporates a switch with durable coil spring in a high precision case
Compact using a single switch for applications where strength is required
Terminal protective cover can be switched to wire cable from left or right

Standards

EN, UL, CSA, CCC, IEC IP67

OMRON Limit Switch, 50/60Hz Operating Frequency, 15A Maximum Inrush Current - SHL Series - SHL-Q2255

Want to boost productivity in your automated network? Add this limit switch from OMRON to your control panel. When the actuator is pressed, it cuts the power to one system and starts up another, so it's ideal for activating machine guards, doors or other positioning actions in your robotics network. The sintered stainless steel alloy roller stands up to heavy wear and tear, giving you long-lasting performance. An IP67 rating means this unit is entirely sealed against dust and water for safe use in contaminated conditions.

Features & Benefits

• Operating temperature range of -10°C to +80°C means it's handy for extreme environments
• Protected against short-circuit damage thanks to a 10A fuse
• Handles up to 30 operations per minute to keep up with demanding systems
• Screw connection simplifies wiring
• Mechanical life of 10 million operations means it's a long-lasting option

Applications

• Manufacturing industry
• Food and drink production
• Material handling equipment

What kind of loads can this switch handle?

This switch is a general-purpose type so you can trust it to handle industrial loads. If you need a device that handles micro loads, go for a specialist option (214-7957).

Standards

EN, UL, CSA, CCC, IEC IP67
