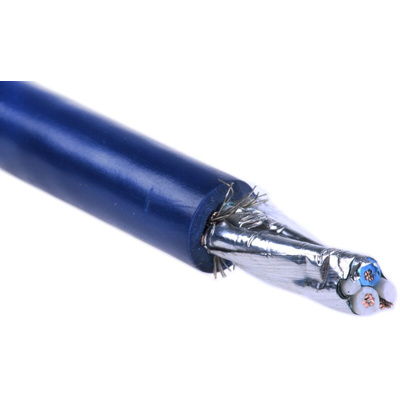

6450 BL005, Alpha Wire Foil/Braid Shield Blue Twinaxial Cable, 8.23mm OD 30m, Alpha Essentials series, 78 Ω impedance, Кабель

Alpha Wire 600 V Foil + Braid Single Pair Industrial Twinax Cable

Offering industry-leading mechanical and electrical performance for the major industrial automation protocols, including ControlNet, RS-485, DeviceNet, Fieldbus, PROFIBUS and Industrial Twinax. With multiple configurations, the Alpha Wire data cable range is sure to meet the needs of your demanding applications.
Suitable for use with FIT-221 and FIT-321 heat-shrink tubing.

Features and Benefits

Operating Temperature: -40°C to +75°C
Blue-White conductor colour coding
Tinned stranded copper conductors
Flame-resistant polypropylene insulation
Foil + 55% tinned copper braided shielding
Blue PVC jacket
UL sunlight resistant

Standards and Approvals

UL TC, PLTC, ITC, UL CMG, CSA CMG FT4

Industrial Twinax Cable - 30 m Reel

Twinax (Twinaxial) cable is similar to coaxial cable however it has two inner conductors instead of one. The two conductors do not carry individual signals, they work in a half-duplex mode meaning both connectors transmit data. Twinax cables are cost-effective and suitable for short-range signalling applications.

6450 BL005

Pairs: 1
Conductor: 18 AWG (0.90 mm²)
Stranding: 7/26 AWG (7 x 0.40 mm)
Nominal Diameter: 0.324 inch (8.23 mm)

Industrial Twinax 600V Cable 30.5m
