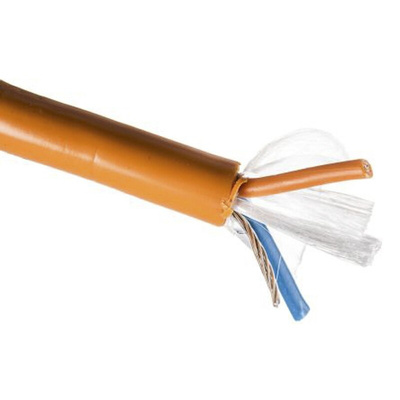

6460 OR001, Alpha Wire Twisted Pair Data Cable, 1 Pairs, 0.33 mm², 2 Cores, 22 AWG, Screened, 305m, Orange Sheath, Кабель

Alpha Wire 300 V Single-Pair Fieldbus Type B Cable

Offering industry-leading mechanical and electrical performance for the major industrial automation protocols, including ControlNet, RS-485, DeviceNet, Fieldbus, PROFIBUS and Industrial Twinax. With multiple configurations, the Alpha Wire data cable range is sure to meet the needs of your demanding applications.

Features and Benefits

Operating Temperature: -30°C to +105° C
Blue-Orange conductor colour coding
Tinned copper conductors
Polyolefin insulation
Foil shielding
Orange PVC jacket
UL sunlight resistant

Standards and Approvals

UL PLTC-ER, UL CM, UL ITC, CSA CM

Fieldbus Cable Type B - 305 m Reel

Fieldbus cables are mainly used in the field as they are ideal for measurement and control systems and can handle high rates of data. The standards for the different Fieldbus types begin with Type A which meets the strictest demand requirements to Type D.

6460 OR001

Pairs: 1
Conductor: 22 AWG (0.33 mm²)
Stranding: 7/0.0096 AWG (7 x 0.24 mm)
Nominal Diameter: 0.196 inch (4.97 mm)
