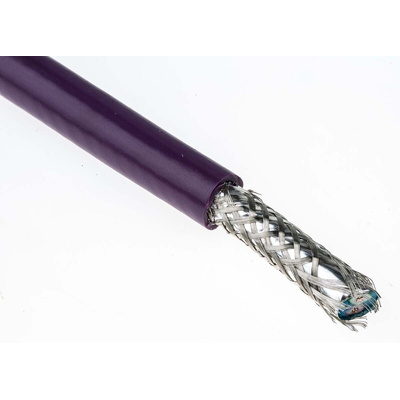

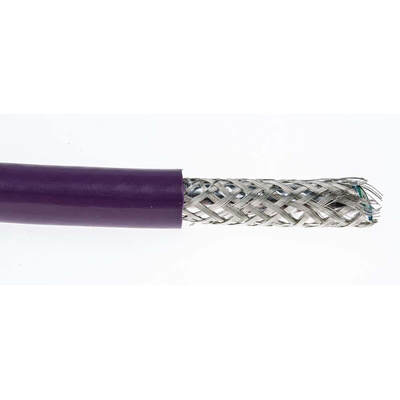

6463 VI005, Alpha Wire Twisted Pair Data Cable, 1 Pairs, 0.35 mm², 2 Cores, 22 AWG, Screened, 30m, Purple Sheath, Кабель

Alpha Wire 300 V Single-Pair PROFIBUS-DP Cable

Offering industry-leading mechanical and electrical performance for the major industrial automation protocols, including ControlNet, RS-485, DeviceNet, Fieldbus, PROFIBUS and Industrial Twinax. With multiple configurations, the Alpha Wire data cable range is sure to meet the needs of your demanding applications.
Suitable for use with FIT-221 and FIT-321 heat-shrink tubing.

Features and Benefits

Operating Temperature: -30°C to +75°C (PLTC, CMG), -30° to +60°C (AWM)
Red-Green conductor colour coding
Tinned copper conductors
Foam high-density polyethelene insulation
Foil and tinned copper braided shielding
Purple PVC jacket
UL sunlight resistant

Standards and Approvals

UL AWM 20201 (6462 only), UL PLTC, UL CMG, CSA CMG FT4

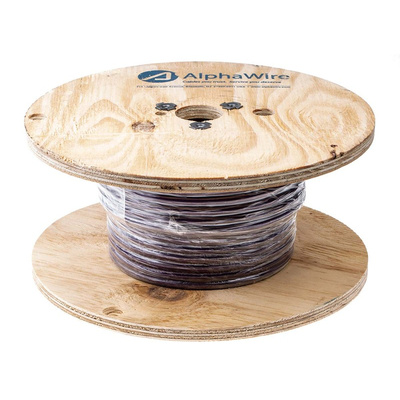

Profibus Cable 305 m Reel

Profibus cable has been designed for industrial Fieldbus fast connection systems. Profibus cables differ from control cables in that they can support many devices depending on the system. Profibus DP cables are widely used in factory processes as they have been designed to deliver time-critical communication between automated systems and peripherals.

6463 VI001

Pairs: 1
Conductor: 22 AWG (0.35 mm²)
Stranding: 7/30 AWG (7 x 0.25 mm)
Nominal Diameter: 0.315 inch (8.00 mm)

Datasheet

Datasheet 6463

Cable Selection Guide
