6452 SL005, Alpha Wire Data Cable, 0.2 mm², 4 Cores, 22 AWG, Screened, 30m, Grey Sheath, Кабель

Alpha Wire 300 V Class 2 DeviceNet Thin Cable

Offering industry-leading mechanical and electrical performance for the major industrial automation protocols, including ControlNet, RS-485, DeviceNet, Fieldbus, PROFIBUS and Industrial Twinax. With multiple configurations, the Alpha Wire data cable range is sure to meet the needs of your demanding applications.
Suitable for use with FIT-221 and FIT-321 heat-shrink tubing.

Features and Benefits

Operating Temperature: -20°C to +75°C (static) 0°C to +80°C (dynamic)

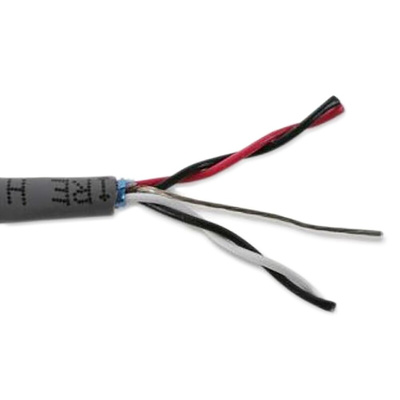

Conductor Colour Coding: Black-Red power, Blue-White data
Tinned copper conductors
Individually foil shielded
PVC insulation (power pair)
Foam HDPE insulation (data pair)
Slate grey PVC jacket
Oil and sunlight resistant

Standards and Approvals

UL CMG, UL CL2, CSA CMG FT4, CSA AWM I/II A/B FT4

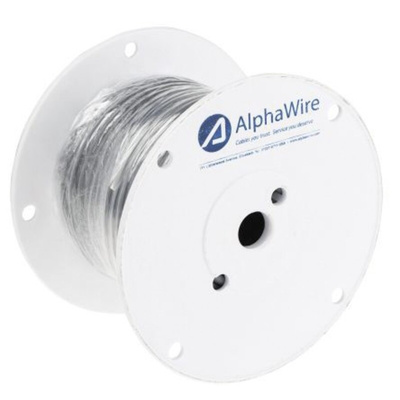

DeviceNet Cable - 305 m Reel

DeviceNet cable is both an open and effective way of connecting factory floor devices in a cost-effective way. DeviceNet has the capability of sending controlled information in small packages to up to 50 devices on a single cable

6452 SL001

Pairs:
1 Power: 22 AWG (0.38 mm²), 19/34 (19 x 0.16 mm) stranding
1 Data: 24 AWG (0.24 mm²), 19/36 (19 x 0.13 mm) stranding
Nominal Diameter: 0.280 inch (7.11 mm)
