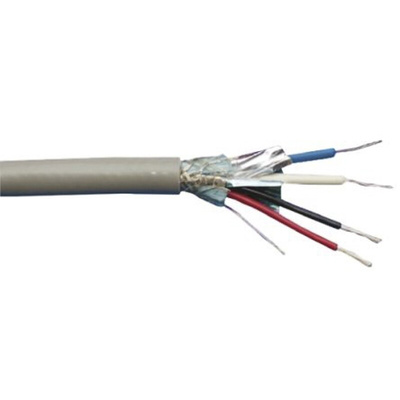

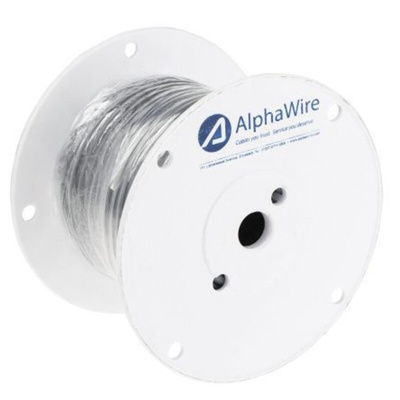

6451 SL005, Alpha Wire Twisted Pair Data Cable, 2 Pairs, 1.65 mm², 4 Cores, 15 AWG, Screened, 30m, Grey Sheath, Кабель

Alpha Wire 300 V Class 2 DeviceNet Thick Cable

Offering industry-leading mechanical and electrical performance for the major industrial automation protocols, including ControlNet, RS-485, DeviceNet, Fieldbus, PROFIBUS and Industrial Twinax. With multiple configurations, the Alpha Wire data cable range is sure to meet the needs of your demanding applications.
Suitable for use with FIT-221 and FIT-321 heat-shrink tubing.

Features and Benefits

Operating Temperature: -20°C to +75°C (static) 0°C to +80°C (dynamic)
Conductor Colour Coding: Black-Red power, Blue-White data
Tinned copper conductors
Individually foil shielded
PVC insulation (power pair)
Foam HDPE insulation (data pair)
Slate grey PVC jacket
Oil and sunlight resistant

Standards and Approvals

UL CMG, UL PLTC-ER, CSA CMG FT4, CSA AWM I/II A/B FT4

DeviceNet Cable

DeviceNet cable is both an open and effective way of connecting factory floor devices in a cost effective way. DeviceNet has the capability of sending controlled information in small packages to up to 50 devices on a single cable.

6451 SL005

Pairs:
1 Power: 15 AWG (1.75 mm²), 19/0.0135 (19 x 0.35 mm) stranding
1 Data: 18 AWG (0.96 mm²), 19/30 (19 x 0.25 mm) stranding

Nominal Diameter: 0.480 inch (12.19 mm)

Datasheet

Datasheet 6451

Cable Selection Guide
