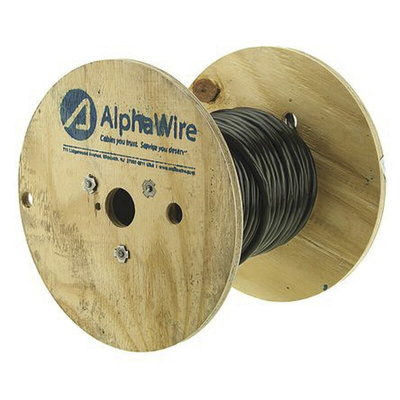

6454 BK005, Alpha Wire Twisted Pair Data Cable, 1 Pairs, 0.456 mm², 2 Cores, 22 AWG, Screened, 30m, Black Sheath

Alpha Wire Shielded Twisted Pair RS-485 Data Cable, 300 V, 22 AWG - 6454

Experience high-performance data transmission with the 6454 cable from Alpha Wire, Belden. This twisted pair cable is designed for use in major industrial automation protocols.

Part of the Alpha Essentials series, this 6454 cable features foam high-density polyethylene insulation and foil + 65% tinned copper braid shielding which minimises signal distortion caused by electrical noise. It has a wide operating temperature range of 20°C to +60°C. The black PVC outer jacket offers high protection against damage caused by abrasions or contact with chemicals and water, making this cable a robust choice for your installation. It comes with 2 conductors constructed as 1 twisted pair.

Features and Benefits:

• Tinned copper conductors ensure optimal conductivity of electrical signals
• Crosstalk is reduced due to twisted pair design
• 26 lbs maximum pull tension
• Resistant to sunlight (UL)

What is RS-485?

This term refers to an industry standard for defining the electrical characteristics of serial lines in serial communication systems (methods of sending data). This standard is useful for industrial control systems as it ensures signal transmission over long distances and electrically noisy environments, in installations where many devices may need to be interconnected.
