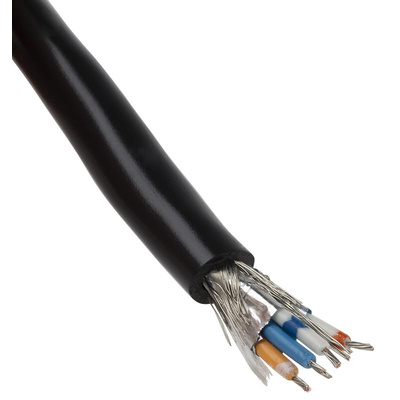

6455 BK005, Alpha Wire Twisted Pair Data Cable, 2 Pairs, 0.456 mm², 4 Cores, 22 AWG, Screened, 30m, Black Sheath, Кабель

Alpha Wire 300 V Foil + Braid Multipair RS-485 Cable

Offering industry-leading mechanical and electrical performance for the major industrial automation protocols, including ControlNet, RS-485, DeviceNet, Fieldbus, PROFIBUS and Industrial Twinax. With multiple configurations, the Alpha Wire data cable range is sure to meet the needs of your demanding applications.
Suitable for use with FIT-221 and FIT-321 heat-shrink tubing.

Features and Benefits

Operating Temperature: -20°C to +60°C
Tinned copper conductors
Foam high-density polyethylene insulation
Foil + 65% tinned copper braide shielding
Black PVC jacket
UL sunlight resistant

Standards and Approvals

UL CM, CMG, UL TC, PLTC, CSA CM, CMG FT1

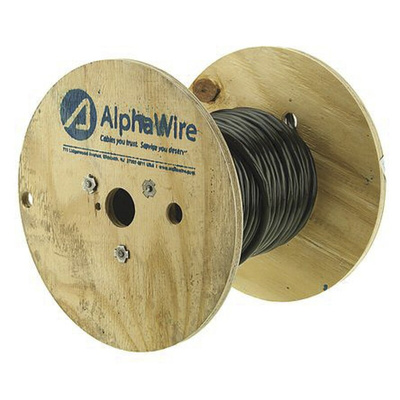

RS-485 Cable - 30 m Reel

RS-485 cable meets the standard that specifies the electrical characteristics of drivers, receivers and transceivers in serial communication systems. Digital communication can be used over long distances and electrically noisy environments.

6455 BK005

Pairs: 2
Nominal Diameter: 0.408 inch (10.36 mm)
Insulation Thickness: 0.024 inch (0.61 mm)
Jacket Thickness: 0.053 inch (1.35 mm)
Stranding: 7/30 (7 x 0.25 mm²)

Datasheet

Cable Selection Guide
