6824 YL005, Alpha Wire EcoWire Plus Series Yellow 0.52 mm² Hook Up Wire, 20 AWG, 7/0.32 mm, 30m, MPPE Insulation

Alpha Wire EcoWire Plus Hook-Up Wire

EcoWire Plus hook-up wire from Alpha Wire has all the benefits of EcoWire but with improved fluid resistance and a higher temperature range. EcoWire Plus has been made to be used in demanding factory applications.
Containing no halogens or heavy metals, EcoWire Plus meets all RoHS and WEEE requirements, and can be easily recycled. The mPPE insulation is lighter, tougher and provides superior dielectric strength than PVC, allowing the insulation to be a lot thinner.

Features and Benefits

Made from mPPE
Easily recycled
No hazardous materials
Excellent resistance to hazardous fluids
Low specific gravity
Reduced wall thickness
Stranded bare copper conductors
Modified polyphenylene ether insulation
Temperature Range: –40°C to +110°C
Voltage 300 V

Product Application Information

EcoWire Plus can withstand oils, solvents, fuels and other hazardous liquids. Ideal applications include, solar, transportation, wind power, industrial and medical.

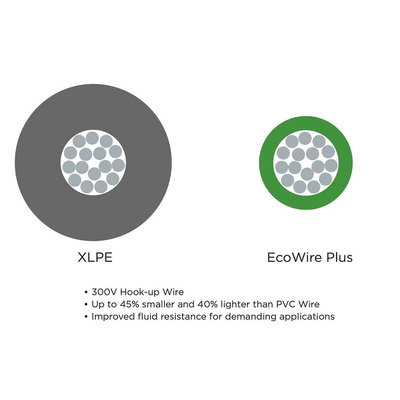

EcoWire Plus is a 100% recyclable alternative to XLPE insulated equipment wire.

What is mPPE?

mPPE stands for modified polyphenylene ether thermoplastic. mPPE is smaller and lighter than PVC. The non-halogenated insulation contains no heavy metal pigments, allowing it to help manufacturers meet Waste Electrical and Electronic Equipment (WEEE) requirements.

Standards

CE, ISO 6722 thin wall, ISO 6722 Ultra thin wall, RoHS, REACH

EcoWire® Plus Hook-Up Wire, 6824 YL005

Conductor Size: 20 AWG (0.56 mm²)
Stranding: 7/28 (7 x 0.32)
Insulation Thickness: 0.008 Inch (0.20 mm)
Wire Diameter: 0.054 Inch (1.37 mm)
Colour: Yellow

EcoWire Plus ™
