3SE5112-0CR01, Siemens SIRIUS 3SE5 Safety Switch With Spring Rod Actuator, Metal, NO/NC, Концевой выключатель

7497593
Номер производителя: 3SE5112-0CR01Производитель: Siemens
Цена за шт.
10314.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

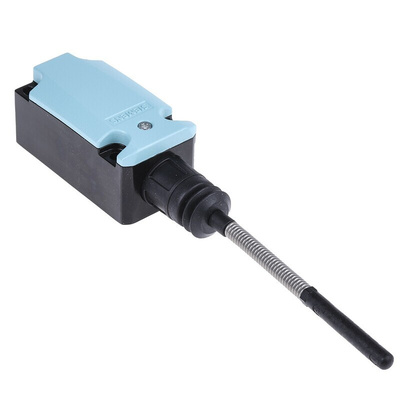

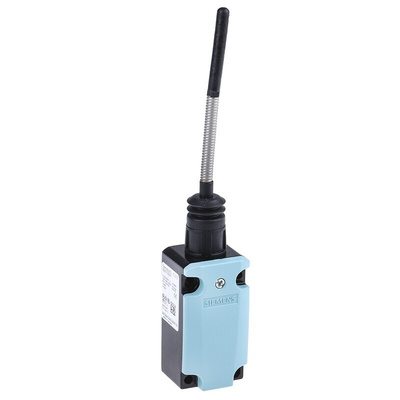

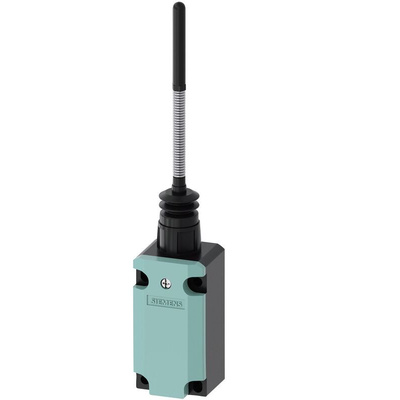

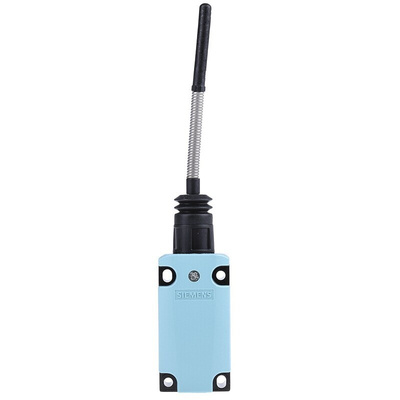

Siemens Limit Switch

The Siemens 3SE5 series limit switch has a spring rod actuator and 2 contacts of a snap-action element. This switch has 1NO/1NC contact with screw connection and positive opening switching function. It has a voltage rating of 400V and a thermal current rating of 6A. Its standard design and function of the limit switch not only make it easy to select the right switch but also enable quick and easy installation, wiring and maintenance.

Features and Benefits

Easy replacement and mounting of actuator heads through plug mounting with a uniform interface
Integrated chlorinated rubber diaphragm (high functional safety in cold and aggressive environments)
Actuator heads can be rotated in 22.5° increments
Mounting time reduction up to 25% through rapid connection system for plastic enclosures
Built-in rounded plunger with 3mm over travel (total travel 9mm) for greater tolerance when switching
Minimum mechanical life is 15000000 cycles

Certifications

IP66 rated
IP67 rated
ISO13849-1(EN 954-1)
EN50041
EN50047

Техническая спецификация
pdfDatasheet
pdfMachine Guarding and Safety Range Overview
Глубина:
37.3мм
Длина:
85.7мм
Конфигурация полюса и сброса:
DPST
Материал корпуса:
Металл
Минимальный срок службы:
10000000 циклов
Нормальное состояние конфигурации:
NO/NC
Ориентация при монтаже:
Универсальный
Размеры:
85.7 x 40.5 x 37.3 мм
Серия:
3SE5
Соединение - тип:
Винт
Степень защиты IP:
IP66, IP67
Тип актуатора:
Spring Rod
Ширина:
40.5мм
